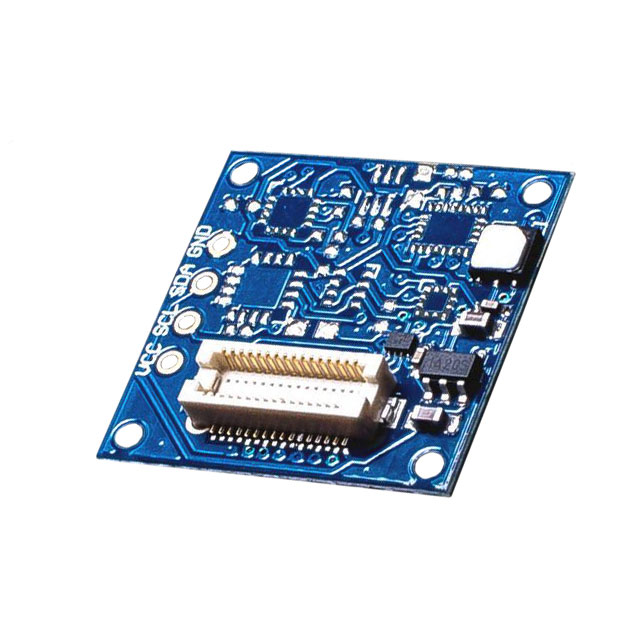

ASD2511-R-T

Active

TinyCircuits

TEMPERATURE/HUMIDITY TINYSHIELD

Search across all available documentation for this part.

Active

TinyCircuits

TEMPERATURE/HUMIDITY TINYSHIELD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASD2511-R-T	ASD2511 Series

Contents	Board(s)	Board(s)
Function	Humidity, Temperature	Magnetometer, Gyroscope, Accelerometer, Pressure, Humidity, Temperature, Light, Compass
Platform	TinyDuino	TinyDuino
Type	Sensor	Sensor
Utilized IC / Part	Si7020	LSM9DS1, BMP280, Si7020, TSL2572, Si7020-A10, BMA250

9-AXISTINYSHIELD

Part	Contents	Platform	Type	Utilized IC / Part	Function
TinyCircuits ASD2511-R-N	Board(s)	TinyDuino	Sensor	LSM9DS1	Accelerometer, Gyroscope, Magnetometer
TinyCircuits ASD2511-R-P	Board(s)	TinyDuino	Sensor	BMP280	Pressure
TinyCircuits ASD2511-R-T	Board(s)	TinyDuino	Sensor	Si7020	Humidity, Temperature
TinyCircuits ASD2511-R-N-T-P-L	Board(s)	TinyDuino	Sensor	BMP280, LSM9DS1, Si7020-A10, TSL2572	Accelerometer, Gyroscope, Humidity, Light, Pressure, Temperature
TinyCircuits ASD2511-R-C	Board(s)	TinyDuino	Sensor		Compass
TinyCircuits ASD2511-R-A	Board(s)	TinyDuino	Sensor	BMA250	Accelerometer
TinyCircuits ASD2511-R-L	Board(s)	TinyDuino	Sensor		Light

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.95

General part information

Si7020 Humidity, Temperature Sensor TinyDuino Platform Evaluation Expansion Board
