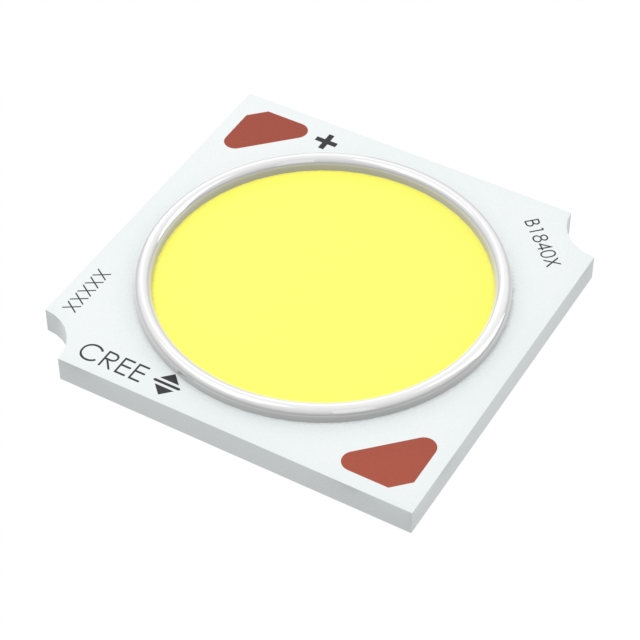

CMB1840-0000-000N0H0A27G

Active

Cree LED

XLAMP CMB LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1840-0000-000N0H0A27G

Active

Cree LED

XLAMP CMB LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.40
		10	$ 7.98
		50	$ 7.75
		100	$ 7.14
		200	$ 6.49
		500	$ 6.08
		1000	$ 5.60
Newark	Each	1	$ 8.40
		1000	$ 5.60
		25000	$ 5.25
		50000	$ 4.94

Description

General part information

CMB1840 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1840 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1840-0000-000N0H0A27G	CMB1840 Series

CCT (K)	2700 K	2200 - 6500 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	White, Warm	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 95
Current - Test	1.1 A	1.1 A
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	14 mm	14 mm
Lumens/Watt @ Current - Test	143 lm/W	109 - 171 lm/W
Luminous Flux @ Current/Temperature	5421 lm	4142 - 6481 lm
Size / Dimension [x]	17.85 mm	17.85 mm
Size / Dimension [y]	17.85 mm	17.85 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	34.4 V	34.4 V

CMB1840 Series

LED COB XLAMP WARM WHT SQU 2700K

Part	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Current - Test	Temperature - Test	Height [z]	Luminous Flux @ Current/Temperature	CCT (K)	Color	Lens Type	Configuration
Cree LED CMB1840-0000-000N0Z0A27H	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V	109 lm/W	95	14 mm	1.1 A	85 °C	1.75 mm	4142 lm	2700 K	Warm, White	Flat	Square
Cree LED CMB1840-0000-000N0H0A27G	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V	143 lm/W	80	14 mm	1.1 A	85 °C	1.75 mm	5421 lm	2700 K	Warm, White	Flat	Square
Cree LED CMB1840-R096-00PN0U0A35H	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V		90	14 mm	1.1 A	85 °C	1.75 mm		3500 K	Warm, White	Flat	Square
Cree LED CMB1840-0000-000N0U0A30H	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V	130 lm/W	90	14 mm	1.1 A	85 °C	1.75 mm	4912 lm	3000 K	Warm, White	Flat	Square
Cree LED CMB1840-0000-000N0U0A31Q	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V		90	14 mm	1.1 A	85 °C	1.75 mm	4691 lm	3100 K	Warm, White	Flat	Square
Cree LED CMB1840-R096-00PN0U0A31Q	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V		90	14 mm	1.1 A	85 °C	1.75 mm		3100 K	Warm, White	Flat	Square
Cree LED CMB1840-R096-00PN0U0A30Q	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V		90	14 mm	1.1 A	85 °C	1.75 mm			Warm, White	Flat	Square
Cree LED CMB1840-R096-00PN0U0A30U	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V		90	14 mm	1.1 A	85 °C	1.75 mm			Warm, White	Flat	Square
Cree LED CMB1840-R096-000N0U0A35G	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V	132 lm/W	90	14 mm	1.1 A	85 °C	1.75 mm	4982 lm	3500 K	Warm, White	Flat	Square
Cree LED CMB1840-0000-000N0Z0A27H	115 °	17.85 mm	17.85 mm	Chip On Board (COB)	34.4 V	109 lm/W	95	14 mm	1.1 A	85 °C	1.75 mm	4142 lm	2700 K	Warm, White	Flat	Square
