A99000-021

Active

Omnetics

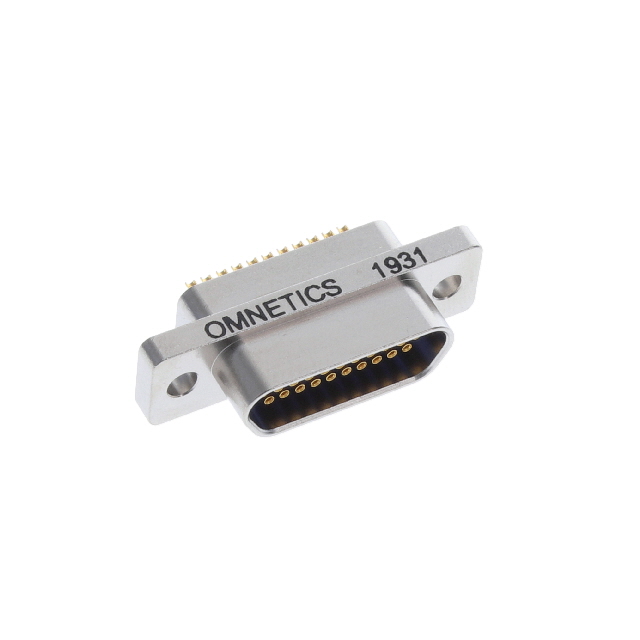

CONN MICRO-D RCPT 21POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 21POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A99000-021	MMDS-021 Series

1st Connector	-	Receptacle, Female Sockets
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	21	21
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CONN MICRO-D RCPT 21POS SLDR CUP

Part	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Shell Material, Finish	Number of Positions	Mounting Type	Contact Material	Connector Type	Flange Feature	Contact Form	Contact Finish	Number of Rows	Connector Style	Type	Length [x]	Length [x]	1st Connector	Color	2nd Connector	Shielding
Omnetics A99000-021	50 µin	1.27 µm	3 A	Signal	-55 °C	125 °C	0.05	0.05	Thermoplastic	Aluminum, Electroless, Nickel Plated	21	Free Hanging (In-Line)	Copper Alloy	Receptacle, Female Sockets	Housing/Shell (Unthreaded)	Stamped	Gold	2	D-Type, Micro-D
Omnetics A99100-021	50 µin	1.27 µm									21						Gold			D-Type, Micro-D	457.2 mm	1.5 ft	Female Sockets, Receptacle	Individual, Multiple	Individual Wire Leads	Unshielded
