RH1V2-UDC24V

Active

IDEC Corporation

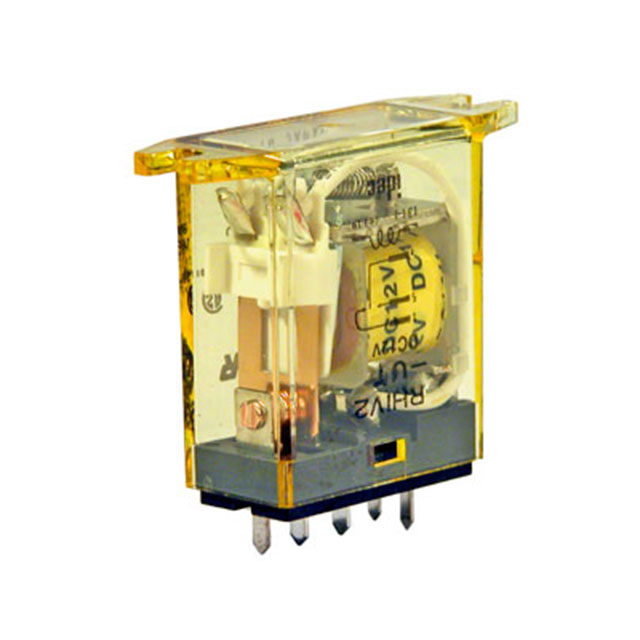

POWER RELAY, SPDT, 24 VDC, 10 A, RH SERIES, THROUGH HOLE, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

RH1V2-UDC24V

Active

IDEC Corporation

POWER RELAY, SPDT, 24 VDC, 10 A, RH SERIES, THROUGH HOLE, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.90
		10	$ 10.60
		25	$ 10.13
		50	$ 9.78
		100	$ 9.44
		250	$ 9.02
		500	$ 8.71
		1000	$ 8.41
Newark	Each	1	$ 12.96
		5	$ 12.25
		10	$ 11.31
		25	$ 9.94
		50	$ 9.06
		100	$ 8.57
		250	$ 8.35

Description

General part information

RH1V2-U Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Specification	RH1V2-UDC24V	RH1V2-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	32 mA	4.3 - 128 mA
Coil Resistance	750 Ohms	2.66 - 750 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 240 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A	10 A
Features	-	Test Button, Lighted Indicator, Diode
Load - Max Switching	300 W, 2400 VA	300 - 2400 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	19.2 VDC	4.8 - 192 VDC
Must Release Voltage	2.4 VDC	0.6 - 72 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 ms
Switching Voltage	30 VDC, 240 VAC	30 - 240 VDC
Termination Style	PC Pin	PC Pin

Part

Must Release Voltage

Operating Temperature [Max]

Operating Temperature [Min]

Termination Style

Operate Time

Approval Agency

Coil Current

Switching Voltage

Mounting Type

Must Operate Voltage

Release Time

Coil Type

Relay Type

Contact Material

Contact Rating (Current)

Load - Max Switching

Coil Resistance

Contact Form

Coil Voltage

Features

IDEC Corporation

RH1V2-UDC24V

2.4 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

32 mA

30 VDC, 240 VAC

Through Hole

19.2 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

750 Ohms

SPDT (1 Form C)

24 VDC

IDEC Corporation

RH1V2-UTDC12V

1.2 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

64 mA

30 VDC, 240 VAC

Through Hole

9.6 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

188 Ohms

SPDT (1 Form C)

12 VDC

IDEC Corporation

RH1V2-UAC100V

30 VAC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

30 VDC, 240 VAC

Through Hole

80 VAC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

SPDT (1 Form C)

100 VAC

IDEC Corporation

RH1V2-UCAC120V

36 VAC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

7.5 mA

30 VDC, 240 VAC

Through Hole

96 VAC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

8.1 kOhms

SPDT (1 Form C)

120 VAC

Test Button

IDEC Corporation

RH1V2-UDC6V

0.6 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

128 mA

30 VDC, 240 VAC

Through Hole

4.8 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

47 Ohms

SPDT (1 Form C)

IDEC Corporation

RH1V2-ULD-DC12V

1.2 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

64 mA

30 VDC, 240 VAC

Through Hole

9.6 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

188 Ohms

SPDT (1 Form C)

12 VDC

Diode, Lighted Indicator

IDEC Corporation

RH1V2-UDC12V

1.2 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

64 mA

30 VDC, 240 VAC

Through Hole

9.6 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

47 Ohms

SPDT (1 Form C)

12 VDC

IDEC Corporation

RH1V2-UDC48V

4.8 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

18 mA

30 VDC, 240 VAC

Through Hole

38.4 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

2.66 kOhms

SPDT (1 Form C)

48 VDC

IDEC Corporation

RH1V2-ULD-DC24V

2.4 VDC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

32 mA

30 VDC, 240 VAC

Through Hole

19.2 VDC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

750 Ohms

SPDT (1 Form C)

24 VDC

Diode, Lighted Indicator

IDEC Corporation

RH1V2-UAC240V

72 VAC/DC

70 °C

-25 °C

PC Pin

20 ms

CE, CSA, cURus, TUV

4.3 mA

30 VDC, 240 VAC

Through Hole

192 VAC

20 ms

Non Latching

General Purpose

Silver Cadmium Oxide (AgCdO)

10 A

300 W, 2400 VA

26.71 kOhms

SPDT (1 Form C)

240 VAC

Part	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Operate Time	Approval Agency	Coil Current	Switching Voltage	Mounting Type	Must Operate Voltage	Release Time	Coil Type	Relay Type	Contact Material	Contact Rating (Current)	Load - Max Switching	Coil Resistance	Contact Form	Coil Voltage	Features
IDEC Corporation RH1V2-UDC24V	2.4 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	32 mA	30 VDC, 240 VAC	Through Hole	19.2 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	750 Ohms	SPDT (1 Form C)	24 VDC
IDEC Corporation RH1V2-UTDC12V	1.2 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	64 mA	30 VDC, 240 VAC	Through Hole	9.6 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	188 Ohms	SPDT (1 Form C)	12 VDC
IDEC Corporation RH1V2-UAC100V	30 VAC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV		30 VDC, 240 VAC	Through Hole	80 VAC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA		SPDT (1 Form C)	100 VAC
IDEC Corporation RH1V2-UCAC120V	36 VAC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	7.5 mA	30 VDC, 240 VAC	Through Hole	96 VAC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	8.1 kOhms	SPDT (1 Form C)	120 VAC	Test Button
IDEC Corporation RH1V2-UDC6V	0.6 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	128 mA	30 VDC, 240 VAC	Through Hole	4.8 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	47 Ohms	SPDT (1 Form C)
IDEC Corporation RH1V2-ULD-DC12V	1.2 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	64 mA	30 VDC, 240 VAC	Through Hole	9.6 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	188 Ohms	SPDT (1 Form C)	12 VDC	Diode, Lighted Indicator
IDEC Corporation RH1V2-UDC12V	1.2 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	64 mA	30 VDC, 240 VAC	Through Hole	9.6 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	47 Ohms	SPDT (1 Form C)	12 VDC
IDEC Corporation RH1V2-UDC48V	4.8 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	18 mA	30 VDC, 240 VAC	Through Hole	38.4 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	2.66 kOhms	SPDT (1 Form C)	48 VDC
IDEC Corporation RH1V2-ULD-DC24V	2.4 VDC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	32 mA	30 VDC, 240 VAC	Through Hole	19.2 VDC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	750 Ohms	SPDT (1 Form C)	24 VDC	Diode, Lighted Indicator
IDEC Corporation RH1V2-UAC240V	72 VAC/DC	70 °C	-25 °C	PC Pin	20 ms	CE, CSA, cURus, TUV	4.3 mA	30 VDC, 240 VAC	Through Hole	192 VAC	20 ms	Non Latching	General Purpose	Silver Cadmium Oxide (AgCdO)	10 A	300 W, 2400 VA	26.71 kOhms	SPDT (1 Form C)	240 VAC
