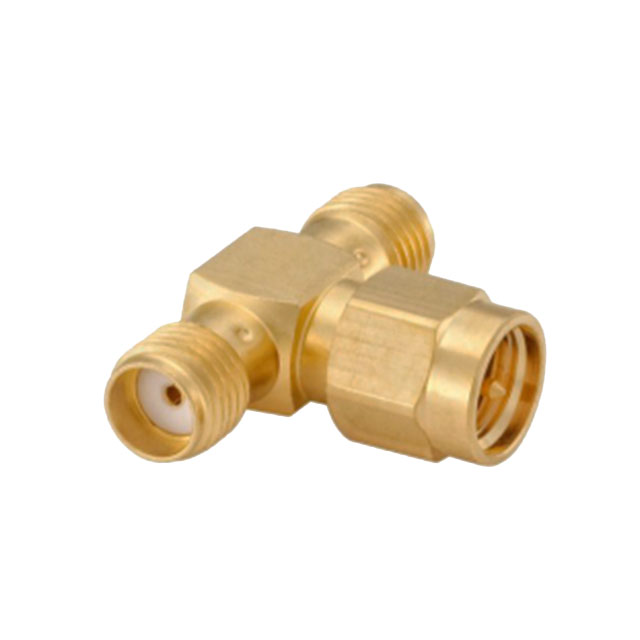

32S301-K00L5

Active

Rosenberger

ADAPT SMA PLUG - 2 SMA JACK T

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA PLUG - 2 SMA JACK T

Technical Specifications

Parameters and characteristics for this part

Specification	32S301-K00L5

Adapter Series	SMA to SMA, Dual
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

Part	Center Contact Plating	Style	Adapter Type	Conversion Type	Impedance	Dielectric Material	Frequency - Max [Max]	Body Finish	Convert To (Adapter End)	Center Contact Material	Body Material	Adapter Series	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Convert From (Adapter End)
Rosenberger 32S301-K00L5	Gold	T-Shape	Plug to Jack	Same Series	50 Ohms	Polytetrafluoroethylene (PTFE)	12.4 GHz	Gold	Female Socket (2) SMA Jack	Beryllium Copper Brass	Beryllium Copper	SMA to SMA Dual	500	-65 ░C	165 °C	Free Hanging (In-Line)	SMA Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket (2) 50 Ohms
