PCA.1S.304.CLLC52Z

Active

LEMO

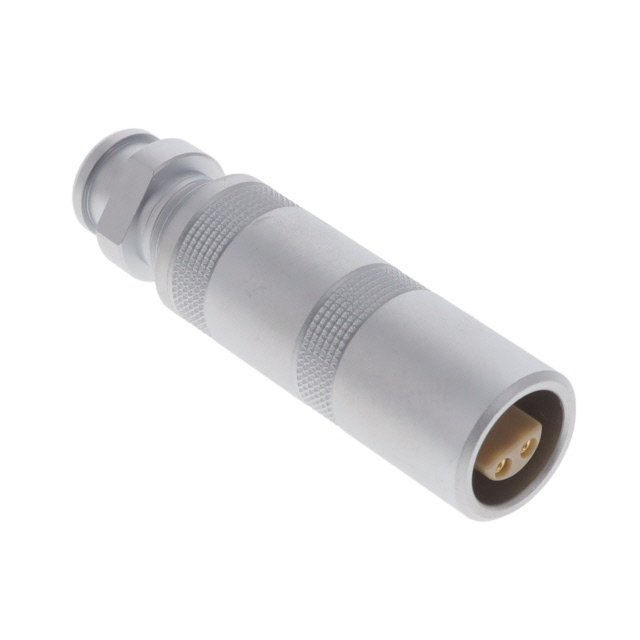

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PCA.1S.304.CLLC52Z

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.07
		10	$ 35.96
		25	$ 34.41
		50	$ 33.30
		100	$ 32.19
		250	$ 30.41

Description

General part information

PCA.1S Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCA.1S.304.CLLC52Z	PCA.1S Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	Belden 9222, 178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174, 400, 223, 187A, 179B, RG-58C, 302, 59B
Cable Opening	-	0.232 - 7.2 mm
Cable Opening	-	0.055 - 0.283 in
Cable Opening	-	0.205 - 0.224 in
Cable Opening	-	0.146 - 0.244 in
Cable Opening	-	0.126 - 0.224 in
Cable Opening	-	3.7 - 6.2 mm
Cable Opening	-	3.2 - 5.7 mm
Cable Opening	-	4.2 mm
Cable Opening	-	5.9 - 6.5 mm
Cable Opening	-	0.051 - 0.146 in
Cable Opening	-	6.2 - 8.7 mm
Cable Opening	-	5.2 - 8.2 mm
Cable Opening	-	0.205 - 0.323 in
Cable Opening	-	0.244 - 0.343 in
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	1.3 - 4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Receptacle, Female Sockets, Female Socket
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder
Current Rating (Amps)	10 A	7 - 25 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Housing Color	-	Silver
Impedance	-	50 - 75 Ohms
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Number of Positions	4	1 - 6
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	120 - 405
Shield Termination	-	Clamp
Shielding	Shielded	Shielded
Termination	-	Crimp

PCA.1S Series

CONN CIRC RCPT 2P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Contact Material	Backshell Material, Plating	Shell Size - Insert	Insert Material	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Mounting Type	Connector Type	Contact Finish - Mating	Number of Positions	Features	Shell Finish	Fastening Type	Shielding	Current Rating (Amps)	Color	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Shield Termination	Contact Termination	Cable Group	Body Material	Impedance	Center Contact Plating	Dielectric Material	Housing Color	Number of Ports	Center Contact Material	Connector Style	Mating Cycles	Body Finish
LEMO PCA.1S.302.CLLC32Z	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	302	Polyetheretherketone (PEEK)	IP50	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold	2	Backshell	Chrome	Push-Pull	Shielded	15 A	Silver	UL94 V-0
LEMO PCA.1S.304.CLLC68Z	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	304	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold	4	Backshell	Chrome	Push-Pull	Shielded	10 A	Silver	UL94 V-0
LEMO PCA.1S.304.CLLC52Z	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	304	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold	4	Backshell	Chrome	Push-Pull	Shielded	10 A	Silver	UL94 V-0	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO PCA.1S.302.CLLC57	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	302	Polyetheretherketone (PEEK)	IP50	5.2 mm, 5.7 mm		Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold	2	Backshell	Chrome	Push-Pull	Shielded	15 A	Silver	UL94 V-0				0.205 in, 0.224 in
LEMO PCA.1S.303.CLLC62	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	303	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold		Backshell	Chrome	Push-Pull	Shielded	10 A	Silver	UL94 V-0					0.244 in	0.224 in	6.2 mm	5.7 mm
LEMO PCA.1S.120.CTLC27Z	-55 °C	250 °C	Keyed	Metal	Bronze	Brass, Chrome	120	Polytetrafluoroethylene (PTFE)	IP50			Brass	Free Hanging (In-Line)	Receptacle, Female Sockets	Gold	1	Backshell	Chrome	Push-Pull	Shielded	18 A	Silver
LEMO PCA.1S.650.CTLC52	-55 °C	250 °C							IP50				Free Hanging (In-Line)	Female Socket, Receptacle					Push-Pull													Clamp	Solder	178, Belden 9222, RG-174	Brass	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Silver	1	Beryllium Copper	Triaxial	1000	Chrome
LEMO PCA.1S.305.CLLC62Z	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	305	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold		Backshell	Chrome	Push-Pull	Shielded	7 A, 10 A	Silver	UL94 V-0					0.244 in	0.224 in	6.2 mm	5.7 mm
LEMO PCA.1S.302.CLLC47	-55 °C	250 °C	Keyed	Metal	Brass, Bronze	Brass, Chrome	302	Polyetheretherketone (PEEK)	IP50			Brass	Free Hanging (In-Line)	Female Sockets, Male Pins, Receptacle	Gold	2	Backshell	Chrome	Push-Pull	Shielded	15 A	Silver	UL94 V-0	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO PCA.1S.250.CTLC66	-55 °C	250 °C							IP50				Free Hanging (In-Line)	Female Socket, Receptacle					Push-Pull													Clamp	Solder	174, 174A, 178B, 188A, 196A, 316B, RG-122	Brass	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Silver	1	Beryllium Copper	Coaxial	1000	Chrome
