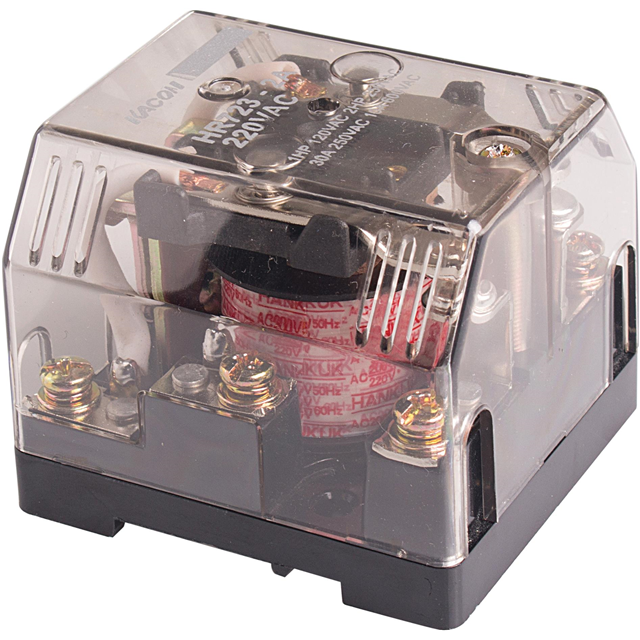

HR723-2C-220VAC

Active

Kacon

RELAY GEN PURPOSE DPDT 30A 220V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE DPDT 30A 220V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HR723-2C-220VAC	HR723 Series

Coil Current	43.6 mA	43.6 - 117 mA
Coil Voltage	220 VAC/DC	24 - 220 VAC/DC
Contact Form	DPDT (2 Form C)	DPST-NO (2 Form A), SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Silver Alloy	Silver Alloy
Contact Rating (Current)	30 A	30 A
Mounting Type	DIN Rail	DIN Rail
Operate Time	30 ms	30 ms
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	30 ms	30 ms
Switching Voltage	250 VAC, 110 VDC	110 - 250 VAC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE DPST 30A 220V

Part	Relay Type	Contact Material	Termination Style	Switching Voltage	Coil Voltage	Contact Form	Release Time	Operate Time	Coil Current	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)
Kacon HR723-2A-220VAC	General Purpose	Silver Alloy	Screw Terminal	110 VDC, 250 VAC	220 VAC/DC	DPST-NO (2 Form A)	30 ms	30 ms	43.6 mA	DIN Rail	80 C	-55 °C	30 A
Kacon HR723-1C-220VAC	General Purpose	Silver Alloy	Screw Terminal	110 VDC, 250 VAC	220 VAC/DC	SPDT (1 Form C)	30 ms	30 ms	43.6 mA	DIN Rail	80 C	-55 °C	30 A
Kacon HR723-2A-24VDC	General Purpose	Silver Alloy	Screw Terminal	110 VDC, 250 VAC	24 VDC	DPST-NO (2 Form A)	30 ms	30 ms	117 mA	DIN Rail	80 C	-55 °C	30 A
Kacon HR723-2C-220VAC	General Purpose	Silver Alloy	Screw Terminal	110 VDC, 250 VAC	220 VAC/DC	DPDT (2 Form C)	30 ms	30 ms	43.6 mA	DIN Rail	80 C	-55 °C	30 A
Kacon HR723-2C-24VDC	General Purpose	Silver Alloy	Screw Terminal	110 VDC, 250 VAC	24 VDC	DPDT (2 Form C)	30 ms	30 ms	117 mA	DIN Rail	80 C	-55 °C	30 A
Kacon HR723-2A-110VAC	General Purpose	Silver Alloy	Screw Terminal	110 VDC, 250 VAC	110 VAC/DC	DPST-NO (2 Form A)	30 ms	30 ms	87.3 mA	DIN Rail	80 C	-55 °C	30 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.84

General part information

General Purpose Relay DPDT (2 Form C) 220VAC Coil DIN Rail
