Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLT01-38S4-TR | CLT01 Series |
|---|---|---|
| - | - | |
| Applications | General Purpose | General Purpose |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |

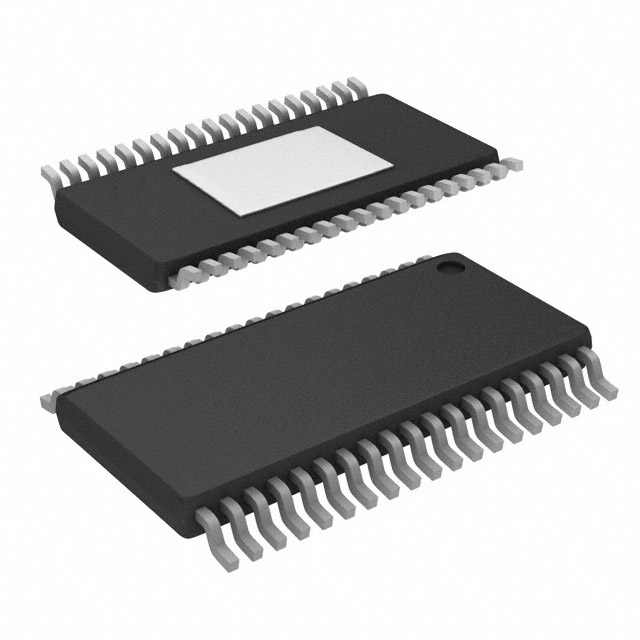

| Package / Case | 38-TFSOP | 48-VFQFN Exposed Pad, 38-TFSOP |
| Supplier Device Package | 38-HTSSOP | 48-QFN (7x7), 38-HTSSOP |
| Technology | Mixed Technology | Mixed Technology |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.10 | |
| 10 | $ 3.44 | |||
| 100 | $ 2.78 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.12 | |||
| Digi-Reel® | 1 | $ 4.10 | ||
| 10 | $ 3.44 | |||
| 100 | $ 2.78 | |||
| 500 | $ 2.47 | |||
| 1000 | $ 2.12 | |||
| Tape & Reel (TR) | 2500 | $ 1.91 | ||
CLT01 Series
High speed protected digital termination array
| Part | Supplier Device Package | Mounting Type | Package / Case | Applications | Number of Circuits | Technology |
|---|---|---|---|---|---|---|
STMicroelectronics CLT01-38SQ7-TR | 48-QFN (7x7) | Surface Mount | 48-VFQFN Exposed Pad | General Purpose | 1 | Mixed Technology |
STMicroelectronics CLT01-38SQ7-TR | ||||||
STMicroelectronics CLT01-38S4 | ||||||
STMicroelectronics CLT01-38S4-TR | ||||||
STMicroelectronics CLT01-38S4-TR | 38-HTSSOP | Surface Mount | 38-TFSOP | General Purpose | 1 | Mixed Technology |
STMicroelectronics CLT01-38SQ7-TR | ||||||
STMicroelectronics CLT01-38S4 | 38-HTSSOP | Surface Mount | 38-TFSOP | General Purpose | 1 | Mixed Technology |
STMicroelectronics CLT01-38SQ7-TR |
Description
General part information
CLT01 Series
The CLT01 series is an octal industrial digital input IC, which drastically reduces the power dissipation of the digital input modules. Its current-sinking inputs can be configured for type 1, type 2, or type 3 inputs as per IEC 61131-2 with few external components.
The CLT01 series includes a serial interface, which translates, conditions, and serializes the data to CMOS-compatible signals through SPI. Combining its daisy-chaining capability with its accurate current limitation, the CLT01 series enhances the I/O module’s density by cutting the power dissipation and reducing the number of optocouplers.
The CLT01 series can be evaluated thanks to the STEVAL-IFP031V1 evaluation board. For detailed application guidelines, refer to the AN4625.
