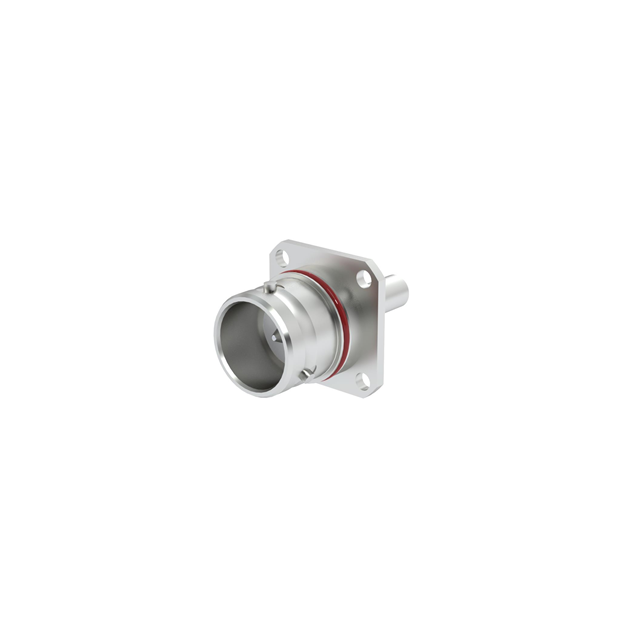

R184282007

Radiall USA, Inc.

QLI / STRAIGHT SQUARE FLANGE JAC

Search across all available documentation for this part.

Radiall USA, Inc.

QLI / STRAIGHT SQUARE FLANGE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	R184282007

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass, Bronze
Center Contact Plating	Silver
Connector Style	QLI
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	850 V

Part	Number of Ports	Connector Style	Ingress Protection	Voltage Rating	Dielectric Material	Fastening Type	Frequency - Max [Max]	Contact Termination	Connector Type	Impedance	Shield Termination	Cable Group	Cable Group	Body Material	Body Finish	Mounting Feature	Housing Color	Center Contact Material	Center Contact Plating
Radiall USA, Inc. R184282007	1	QLI	IP67 - Dust Tight Waterproof	850 V	Polytetrafluoroethylene (PTFE)	Bayonet Lock	6000 MHz	Crimp	Female Socket Jack	50 Ohms	Crimp	141	RG-58	Brass	White Bronze	Flange	Silver	Brass Bronze	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	160	$ 11.87

General part information

QLI Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
