Z8F6422AR00ZEM

Active

Zilog

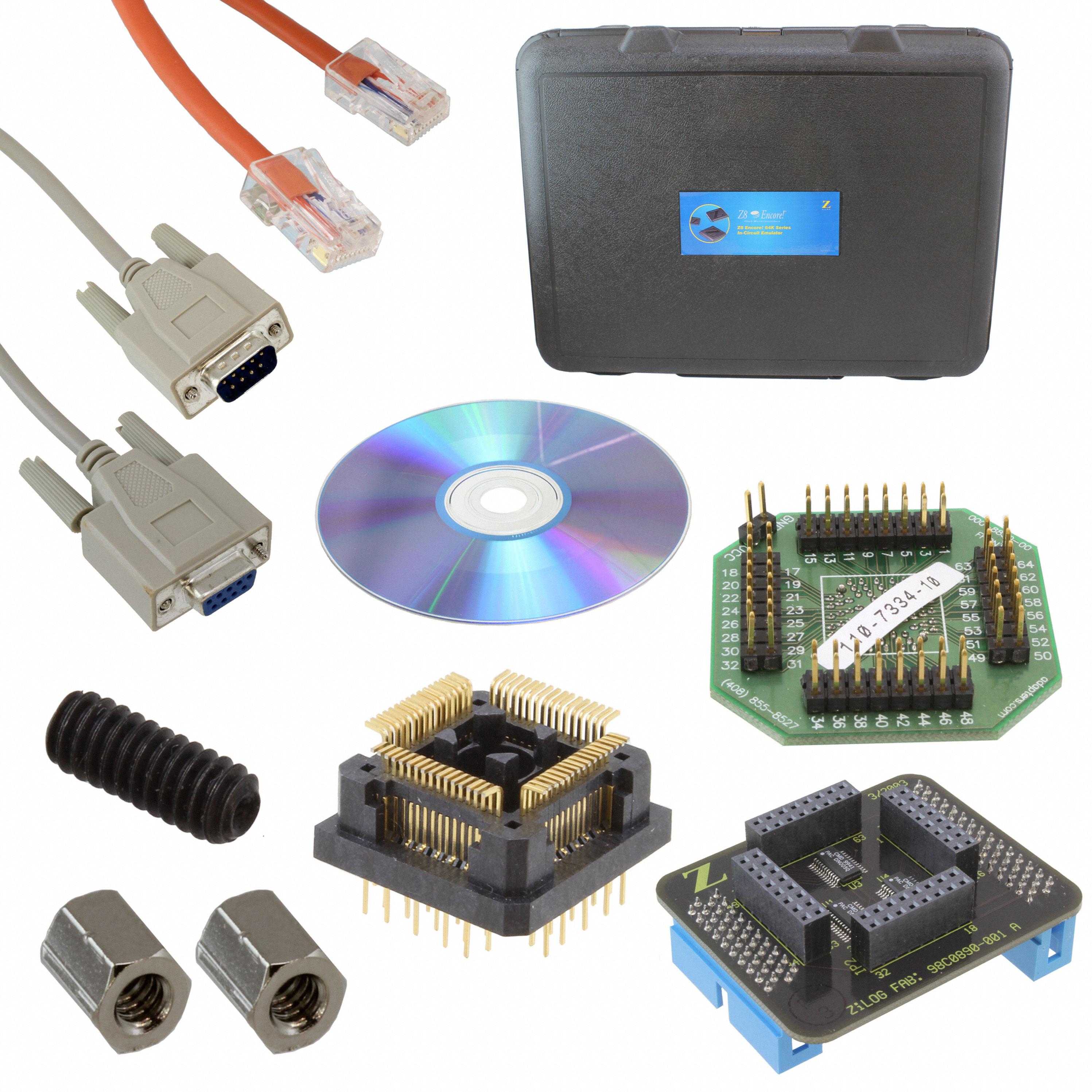

KIT ICE Z8 ENCORE 64K 64LQFP

Search across all available documentation for this part.

Active

Zilog

KIT ICE Z8 ENCORE 64K 64LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	Z8F6422AR00ZEM

Contents	Cable(s), Board(s)
For Use With/Related Products	Z8 Encore! 64-LQFP
Type	Emulator (In-Circuit/In-System)

Part	Connectivity	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of I/O	Core Processor	Core Size	Program Memory Type	Data Converters	Oscillator Type	Program Memory Size	Peripherals	RAM Size	Package / Case	Type	Contents	For Use With/Related Products
Zilog Z8F6422AR020EG	I2C IrDA SPI UART/USART	20 MHz	105 °C	-40 °C	Surface Mount	46	eZ8	8-Bit	FLASH	10 b 12	Internal	64 KB	Brown-out Detect/Reset DMA POR PWM WDT	4K x 8	64-LQFP
Zilog Z8F6422VS00ZEM																Emulator (In-Circuit/In-System)	Board(s) Cable(s)	Z8 Encore! 68-PLCC
Zilog Z8F6422AR020EC	I2C IrDA SPI UART/USART	20 MHz	105 °C	-40 °C	Surface Mount	46	eZ8	8-Bit	FLASH	10 b 12	Internal	64 KB	Brown-out Detect/Reset DMA POR PWM WDT	4K x 8	64-LQFP
Zilog Z8F6422AR020SG	I2C IrDA SPI UART/USART	20 MHz	70 °C	0 °C	Surface Mount	46	eZ8	8-Bit	FLASH	10 b 12	Internal	64 KB	Brown-out Detect/Reset DMA POR PWM WDT	4K x 8	64-LQFP
Zilog Z8F6422VS020SG	I2C IrDA SPI UART/USART	20 MHz	70 °C	0 °C	Surface Mount	46	eZ8	8-Bit	FLASH	10 b 12	Internal	64 KB	Brown-out Detect/Reset DMA POR PWM WDT	4K x 8	68-LCC (J-Lead)
Zilog Z8F6422AR00ZEM																Emulator (In-Circuit/In-System)	Board(s) Cable(s)	Z8 Encore! 64-LQFP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Z8 Encore! 64-LQFP Z8 Encore!® Emulator (In-Circuit/In-System)
