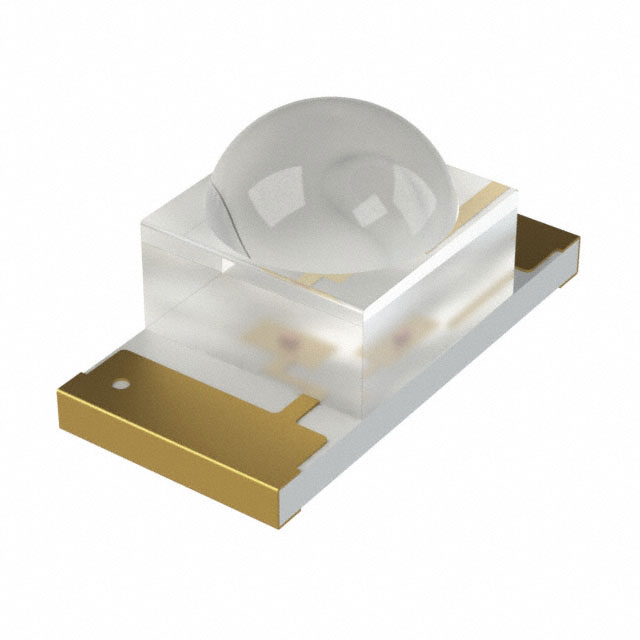

XZDGK55W10MAV-3HTA

Active

SunLED

LED GREEN CLEAR CHIP SMD

Search across all available documentation for this part.

Active

SunLED

LED GREEN CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max] [z]	Lens Color	Lens Transparency	Viewing Angle	Lens Size [diameter]	Mounting Type	Wavelength - Peak	Millicandela Rating	Supplier Device Package	Configuration	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Current - Test	Package / Case	Color	Lens Style	Height (Max) [Max]
SunLED XZDGK55W-A2	1.1 mm	Colorless	Clear	70 °	2.6 mm	Surface Mount	515 nm	995 mcd	2-SMD	Standard	3.3 V	1.6 mm	3.2 mm	525 nm	20 mA	1206 (3216 Metric)	Green
SunLED XZDGK55W10MAV-3HTA	2 mm	Colorless	Clear	30 °	1.6 mm	Surface Mount	515 nm		Chip LED		3 V	1.6 mm	3.2 mm	525 nm	10 mA	1206 (3216 Metric)	Green	Round with Domed Top
SunLED XZDGK55W-A2RT		Colorless	Clear	70 °	1.1 mm	Surface Mount	515 nm	995 mcd	2-SMD	Standard	3.3 V	1.6 mm	3.2 mm	525 nm	20 mA	1206 (3216 Metric)	Green		1.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 525nm LED Indication - Discrete 3V 1206 (3216 Metric)
