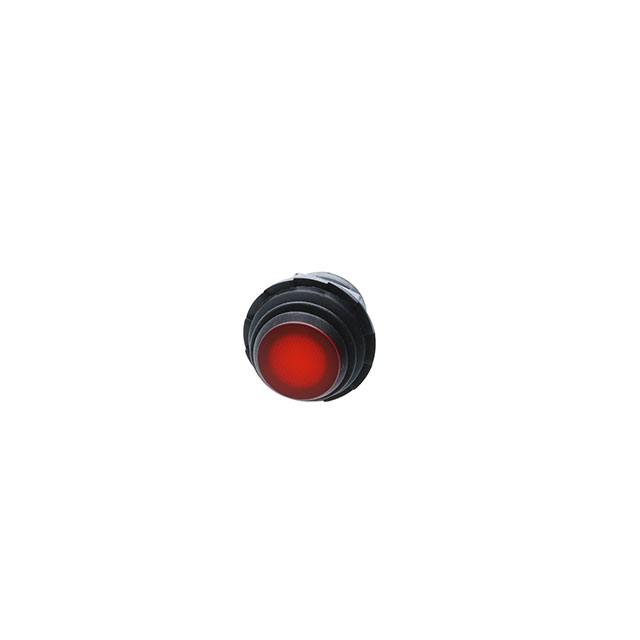

PC-1B-DC-1-RL

Active

Switch Components

SCRW MOUNT SPST OFF-(ON) IP65

Search across all available documentation for this part.

Active

Switch Components

SCRW MOUNT SPST OFF-(ON) IP65

Technical Specifications

Parameters and characteristics for this part

Specification	PC-1B-DC-1-RL

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Illuminated, Standard
Voltage Rating - DC	14 V

SCRW MOUNT SPST OFF-(ON) IP65

Part	Color - Actuator/Cap	Circuit	Ingress Protection	Termination Style	Actuator Marking	Actuator Type	Mounting Type	Illumination Type, Color	Electrical Life	Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Illumination Voltage (Nominal)	Mechanical Life	Switch Function	Current Rating (Amps)
Switch Components PC-1B-DC-1-RL	Red	SPST-NO	IP65 - Dust Tight, Water Resistant	Quick Connect - 0.250" (6.3mm)	No Marking	Button, Round	Panel Mount, Front	LED, Red	6000 Cycles	Illuminated, Standard	22 mm	-25 °C	85 °C	14 V	12 VDC	10000 Steps	Off-Mom	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
