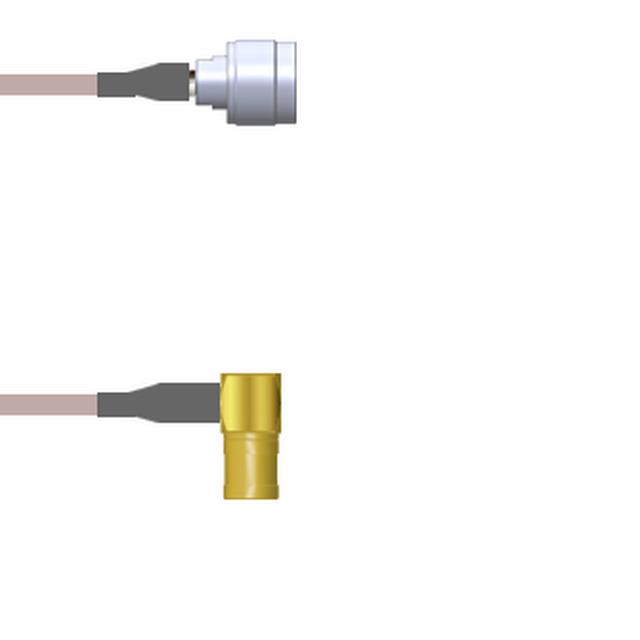

Q-2H03R00012.5M

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLG 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-PLG 8.2'

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	Length	Length	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	1st Connector Mounting Type	Style	1st Connector	Color	Features	2nd Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-2H03R00010.5M	50 Ohms	50 cm	19.69 "	Male	RG-178	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	SMB to N-Type	Right Angle SMB Plug	Copper	Shielded	N-Type Plug
Amphenol Custom Cable Q-2H03R00012.5M	50 Ohms	2.5 m	98.4 in	Male	RG-178	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	SMB to N-Type	Right Angle SMB Plug	Copper	Shielded	N-Type Plug	8.2 '
Amphenol Custom Cable Q-2H03R0001.25M	50 Ohms			Male	RG-178	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	SMB to N-Type	Right Angle SMB Plug	Copper	Shielded	N-Type Plug		9.843 "	250 mm
Amphenol Custom Cable Q-2H03R0001003M	50 Ohms	3 m	118.1 in	Male	RG-178	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	SMB to N-Type	Right Angle SMB Plug	Copper	Shielded	N-Type Plug	9.8 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMB to N-Type RG-178 98.4" (2.5m) 8.2'

Technical documentation and resources

No documents available
