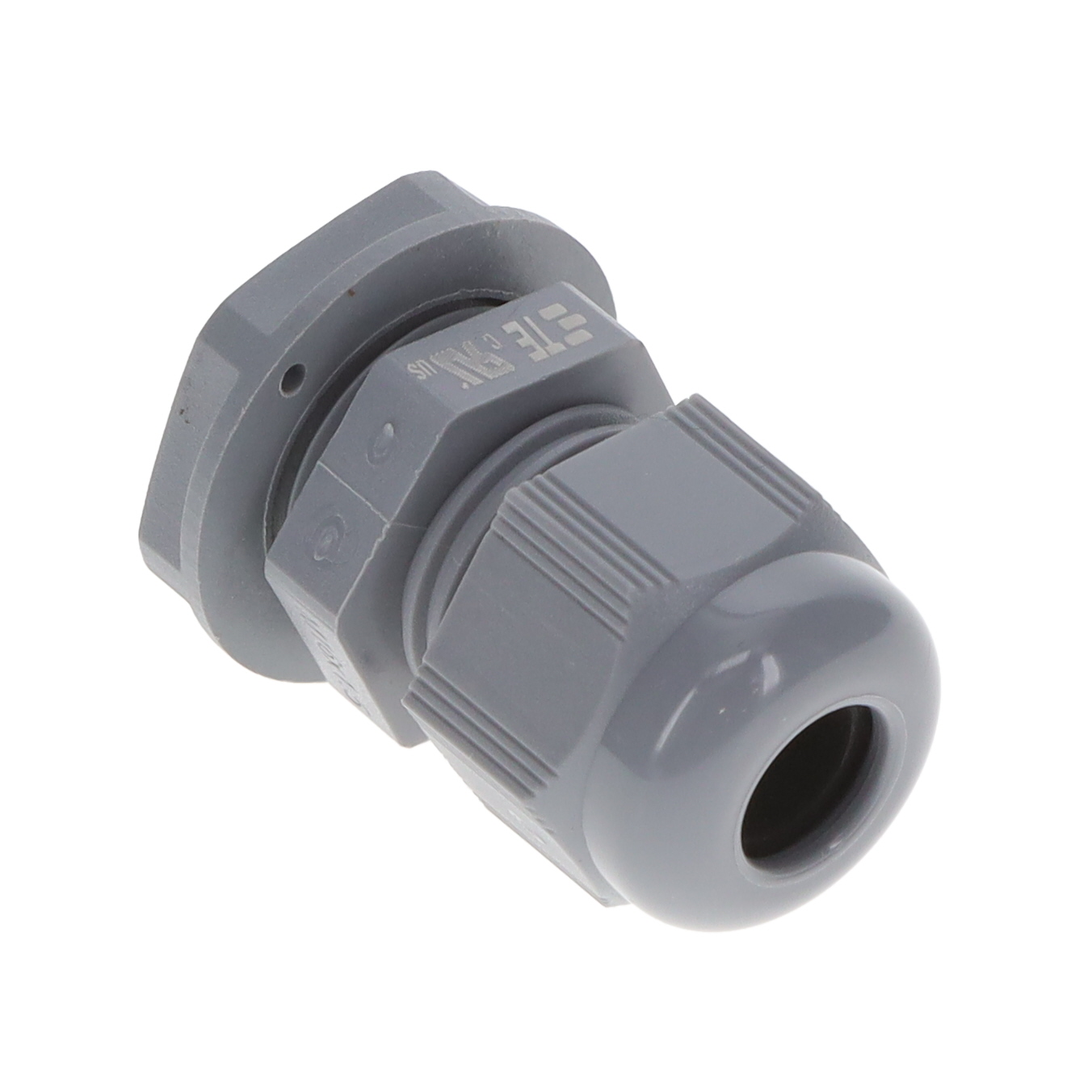

EP-SGL-M16-GR-F

Active

TE Connectivity ENTRELEC

CABLE GLAND 4-8MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 4-8MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EP-SGL-M16-GR-F	EP-SGL-M16 Series

Color	Gray	Gray, Black
Includes	Seal	Seal, Locknut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	8 - 10 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.315 - 0.394 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 - 0.197 in
Outside Cable Diameter (Min) [Min]	4 mm	4 - 5 mm
Thread Length	8 mm	8 - 10 mm
Thread Length	0.315 in	0.315 - 0.394 in
Thread Size	M16x1.5	M16x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 4-8MM M16 POLYAMIDE

Part	Color	Includes	Ingress Protection	Type	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size
TE Connectivity ENTRELEC EP-SGL-M16-GR-F	Gray	Seal	IP68 - Dust Tight, Waterproof	Cable Gland	8 mm	0.315 in	100 °C	-20 C	8 mm	0.315 in	0.157 in	4 mm	M16x1.5
TE Connectivity ENTRELEC EP-SGL-M16-GR-I	Gray	Seal	IP68 - Dust Tight, Waterproof	Cable Gland	10 mm	0.394 in	100 °C	-20 C	10 mm	0.394 "	0.197 in	5 mm	M16x1.5
TE Connectivity ENTRELEC EP-SGL-M16-BL-F	Black	Locknut, Seal	IP68 - Dust Tight, Waterproof	Cable Gland	8 mm	0.315 in	100 °C	-20 C	8 mm	0.315 in	0.157 in	4 mm	M16x1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M16x1.5 Gray
