A3KKB-1606M
ActiveTE Connectivity AMP Connectors
IDC CABLE - APK16B/AE16M/APK16B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3KKB-1606M
ActiveTE Connectivity AMP Connectors
IDC CABLE - APK16B/AE16M/APK16B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3KKB-1606M | A3KKB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Plug to Plug | Plug to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.5 - 3 ft |
| Length | - | 457.2 - 914.4 mm |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 64 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.24 | |
| 10 | $ 21.75 | |||
| 25 | $ 20.19 | |||
| 50 | $ 19.08 | |||
| 100 | $ 18.04 | |||
| 250 | $ 16.76 | |||
| 500 | $ 15.99 | |||
A3KKB Series
IDC CABLE - APK16B/AE16M/APK16B
| Part | Length | Length | Length | Pitch - Cable | Pitch - Cable | Features | Connector Type | Number of Positions | Pitch - Connector | Pitch - Connector | Shielding | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Rows | Contact Finish | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3KKB-1606M | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 16 | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | |||
TE Connectivity AMP Connectors A3KKB-4036M | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | 3 ft | 914.4 mm | 40 | ||||
TE Connectivity AMP Connectors A3KKB-1006M | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | 10 | |||
TE Connectivity AMP Connectors A3KKB-1406M | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | 14 | |||
TE Connectivity AMP Connectors A3KKB-1006G | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | 2 | Gold | 10 | ||||
TE Connectivity AMP Connectors A3KKB-1606G | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 16 | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | 2 | Gold | ||||
TE Connectivity AMP Connectors A3KKB-6406G | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | 2 | Gold | 64 | ||||
TE Connectivity AMP Connectors A3KKB-3418M | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | 1.5 ft | 457.2 mm | 34 | ||||
TE Connectivity AMP Connectors A3KKB-4006M | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | 40 | |||
TE Connectivity AMP Connectors A3KKB-3006M | 152.4 mm | 6 " | 0.5 ' | 0.05 " | 1.27 mm | Polarizing Key | Plug to Plug | 0.1 in | 2.54 mm | Unshielded | IDC | 0.76 Ám | 30 Áin | Multiple, Ribbon | 2 | Gold | 30 |
Description
General part information
A3KKB Series

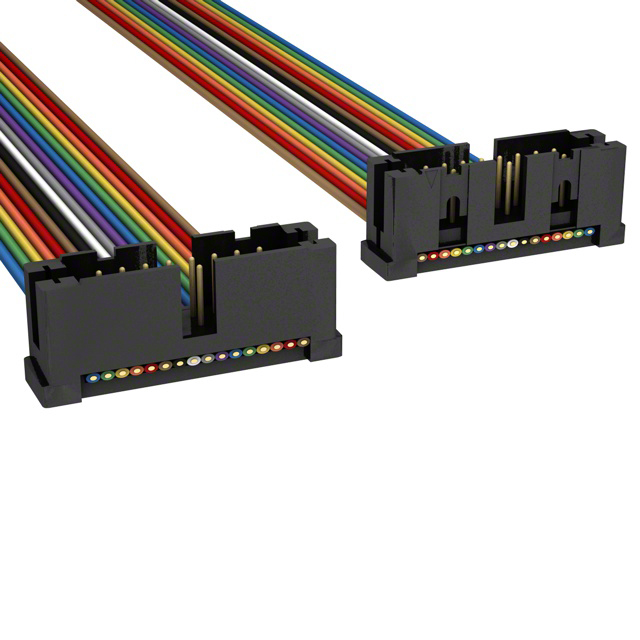

16 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")
