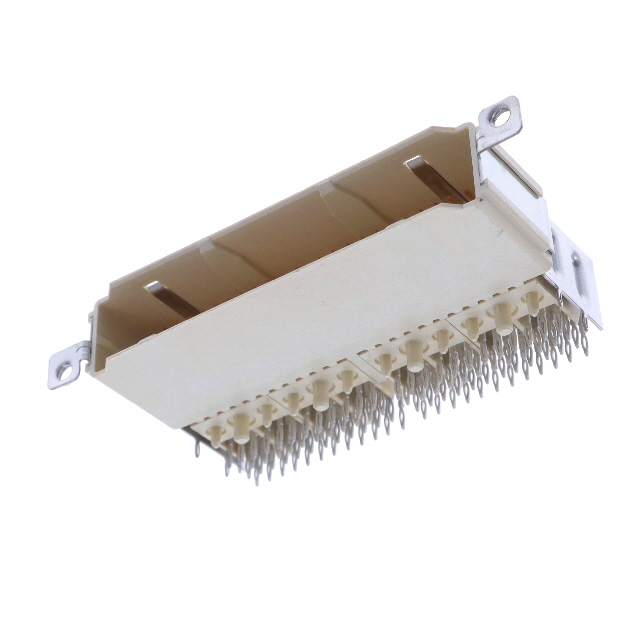

10087068-101LF

Active

Amphenol ICC (FCI)

CONN FFC

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC

Technical Specifications

Parameters and characteristics for this part

Specification	10087068-101LF

Color	Natural
Connector Type	Header, Male Pins
Features	Mating Guide, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Columns	24
Number of Positions	96
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Pitch [x]	Pitch [x]	Mounting Type	Color	Number of Positions	Features	Number of Columns	Number of Positions Loaded	Material Flammability Rating	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 10087068-101LF	0.079 in	2 mm	Through Hole Right Angle	Natural	96	Board Guide Mating Guide	24	All	UL94 V-0	Press-Fit	Header Male Pins	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Connector Header, Male Pins Through Hole, Right Angle Natural
