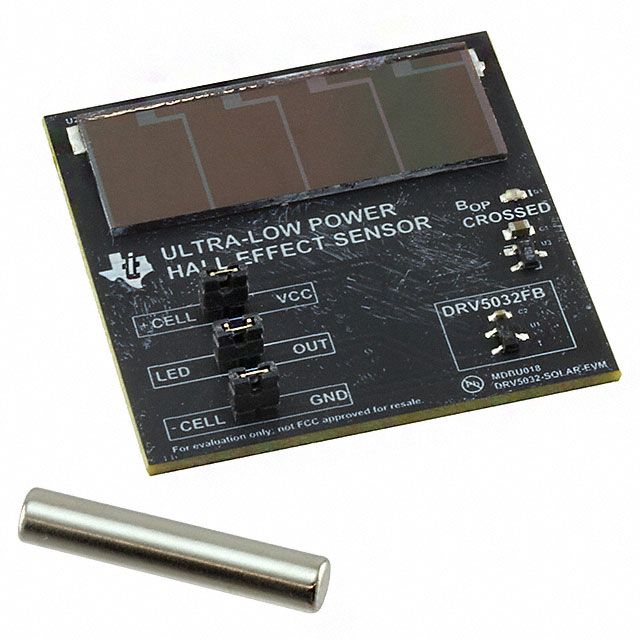

DRV5032-SOLAR-EVM

Active

Texas Instruments

EVALUATION MODULE

Find alt

Alpha

DRV5032-SOLAR-EVM

Active

Texas Instruments

EVALUATION MODULE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

DRV5032 Series

The DRV5032 device is an ultra-low-power digital-switch Hall effect sensor, designed for the most compact and battery-sensitive systems. The device is offered in multiple magnetic thresholds, sampling rates, output drivers, and packages to accommodate various applications.

When the applied magnetic flux density exceeds the BOP threshold, the device outputs a low voltage. The output stays low until the flux density decreases to less than BRP, and then the output either drives a high voltage or becomes high impedance, depending on the device version. By incorporating an internal oscillator, the device samples the magnetic field and updates the output at a rate of 80Hz, 20Hz or 5Hz for the lowest current consumption. Omnipolar and unipolar magnetic responses are available.

The device operates from a VCC range of 1.65V to 5.5V, and is packaged in a standard SOT-23, TO-92 and small X2SON.

Technical Specifications

Parameters and characteristics for this part

Specification	DRV5032-SOLAR-EVM

Contents	Board, Accessories
Embedded	No
Sensing Range (Release)	3.7 mT
Sensing Range (Trip)	3.9 mT
Sensor Type	Hall Effect
Utilized IC / Part	DRV5032FB
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.65 V

DRV5032 Series

Low-power (5Hz, <1µA) low-voltage (up to 5.5V) switch

Part	Mounting Type	Technology	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Current - Supply (Max)	Test Condition (Min)	Test Condition (Max)	Current - Output (Max)	Polarization	Package / Case	Sensing Range (Trip)	Sensing Range (Release)	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Function	Features	Package Length	Package Width	Test Condition
Texas Instruments DRV5032AJLPGM	Through Hole	Hall Effect	1.65 V	5.5 V	3.5 µA	-40 °C	85 °C	5 mA	Either	TO-226-3 TO-92-3 Short Body	9.5 mT	3 mT	Open Drain	85 °C	-40 °C	TO-92-3	Omnipolar Switch	Temperature Compensated
Texas Instruments DRV5032FDDMRR	Surface Mount	Hall Effect	1.65 V	5.5 V	3.5 µA			5 mA	North Pole South Pole	4-XFDFN Exposed Pad	4.8 mT	3 mT	Push-Pull	85 °C	-40 °C	4-X2SON	Unipolar Switch		1.1 mm	1.4 mm
Texas Instruments DRV5032FALPG	Through Hole	Hall Effect	1.65 V	5.5 V	3.5 µA	-40 °C	85 °C	5 mA	Either	TO-226-3 TO-92-3 Short Body	4.8 mT	0.5 mT	Push-Pull	85 °C	-40 °C	TO-92-3	Omnipolar Switch	Temperature Compensated
Texas Instruments DRV5032FCDBZR	Surface Mount	Hall Effect	1.65 V	5.5 V	3.5 µA			5 mA	North Pole South Pole	SC-59 SOT-23-3 TO-236-3	4.8 mT	0.5 mT	Open Drain	85 °C	-40 °C	SOT-23-3	Omnipolar Switch				77 °F
Texas Instruments DRV5032ZELPG	Through Hole	Hall Effect	1.65 V	5.5 V	3.5 µA	-40 °C	85 °C	5 mA	Either	TO-226-3 TO-92-3 Short Body	63 mT	30 mT	Open Drain	85 °C	-40 °C	TO-92-3	Omnipolar Switch	Temperature Compensated
Texas Instruments DRV5032AJLPG	Through Hole	Hall Effect	1.65 V	5.5 V	3.5 µA	-40 °C	85 °C	5 mA	Either	TO-226-3 TO-92-3 Short Body	9.5 mT	3 mT	Open Drain	85 °C	-40 °C	TO-92-3	Omnipolar Switch	Temperature Compensated
Texas Instruments DRV5032FADBZT	Surface Mount	Hall Effect	1.65 V	5.5 V	3.5 µA			5 mA	North Pole South Pole	SC-59 SOT-23-3 TO-236-3	3 mT	1.5 mT	Push-Pull	85 °C	-40 °C	SOT-23-3	Omnipolar Switch	Sleep Mode			77 °F
Texas Instruments DRV5032FBDBZR	Surface Mount	Hall Effect	1.65 V	5.5 V	1.8 µA			5 mA	North Pole South Pole	SC-59 SOT-23-3 TO-236-3	4.8 mT	0.5 mT	Push-Pull	85 °C	-40 °C	SOT-23-3	Omnipolar Switch				77 °F
Texas Instruments DRV5032DGDMRR	Surface Mount	Hall Effect	1.65 V	5.5 V	7.9 µA			5 mA	North Pole South Pole	4-XFDFN Exposed Pad	3.4 mT	2.73 mT	Push-Pull	85 °C	-40 °C	4-X2SON	Unipolar Switch	Sleep Mode Temperature Compensated	1.1 mm	1.4 mm	77 °F
Texas Instruments DRV5032FADBZR	Surface Mount	Hall Effect	1.65 V	5.5 V	3.5 µA			5 mA	North Pole South Pole	SC-59 SOT-23-3 TO-236-3	4.8 mT	0.5 mT	Push-Pull	85 °C	-40 °C	SOT-23-3	Omnipolar Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

DRV5032-SOLAR-EVM | Datasheet
