AXE516127A

Active

Panasonic Electric Works

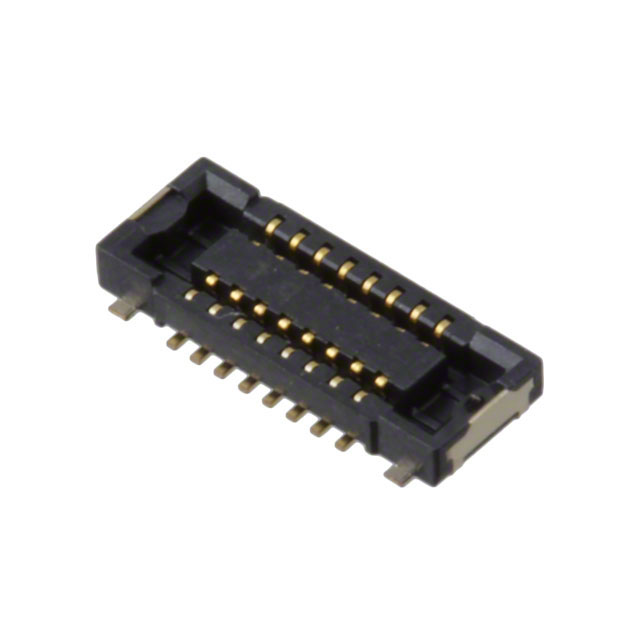

CONN SOCKET 16POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 16POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE516127A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Number of Rows	Features	Mounting Type	Connector Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXE516127A	0.8 mm 1 mm	2	Solder Retention	Surface Mount	Socket Center Strip Contacts	16	Gold	0.016 in	0.4 mm	0.03 in	0.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Connector Socket, Center Strip Contacts Surface Mount Gold
