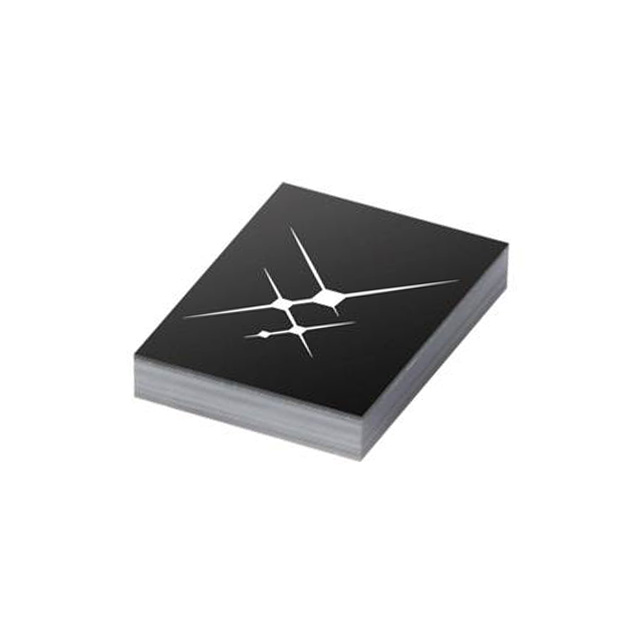

SKY87000-13-001
ObsoleteSkyworks Solutions Inc.
IC REG BUCK ADJ 2A 9WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
SKY87000-13-001
ObsoleteSkyworks Solutions Inc.
IC REG BUCK ADJ 2A 9WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY87000-13-001 |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP |
| Supplier Device Package [x] | 1.42 |
| Supplier Device Package [y] | 1.49 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Max) [Max] | 4.25 V |
| Voltage - Output (Min/Fixed) | 0.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.63 | |||
Description
General part information
SKY87000 Series
Buck Switching Regulator IC Positive Adjustable 0.4V 1 Output 2A 9-UFBGA, WLCSP
Documents
Technical documentation and resources
No documents available
