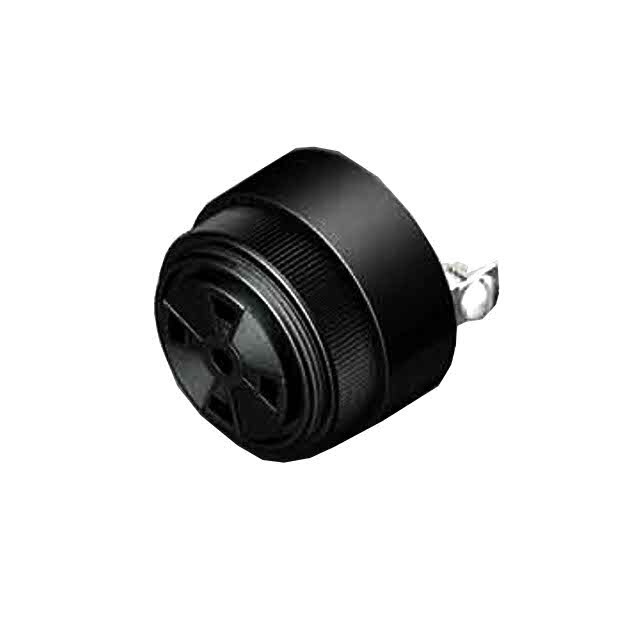

MC-07-116-S

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MC-07-116-S	MC-07-116 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	20 mA	20 mA
Current - Supply [Min]	3 mA	3 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	0.99 in	0.99 in
Height - Seated (Max) [Max] [z]	25.15 mm	25.15 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Single Tone	Single Tone
Port Location	Top	Top
Size / Dimension [diameter]	1.41 in	1.41 in
Size / Dimension [diameter]	35.81 mm	35.81 mm
Sound Pressure Level (SPL)	93 dB	93 dB
Technology	Piezo	Piezo
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	16 V	16 V
Voltage Range [Min]	3 V	3 V

BUZZER PIEZO 35.81MM PNL MNT

Part	Port Location	Driver Circuitry	Voltage Range [Max]	Voltage Range [Min]	Frequency	Current - Supply [Max]	Current - Supply [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Sound Pressure Level (SPL)	Input Type	Operating Mode	Ingress Protection	Technology	Approval Agency	Termination
Floyd Bell Inc MC-07-116-S	Top	Indicator, Internally Driven	16 V	3 V	2.9 kHz	20 mA	3 mA	0.99 in	25.15 mm	1.41 in	35.81 mm	93 dB	DC	Single Tone	IP68 - Dust Tight, Waterproof	Piezo	UL, UR	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Floyd Bell Inc MC-07-116-W	Top	Indicator, Internally Driven	16 V	3 V	2.9 kHz	20 mA	3 mA	0.99 in	25.15 mm	1.41 in	35.81 mm	93 dB	DC	Single Tone	IP68 - Dust Tight, Waterproof	Piezo	UL, UR	Wire Leads
Floyd Bell Inc MC-07-116-Q	Top	Indicator, Internally Driven	16 V	3 V	2.9 kHz	20 mA	3 mA	0.99 in	25.15 mm	1.41 in	35.81 mm	93 dB	DC	Single Tone	IP68 - Dust Tight, Waterproof	Piezo	UL, UR	Quick Connect Tab - 0.250" (6.35mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.30

General part information

Buzzers Indicator, Internally Driven Piezo 3 ~ 20mA 2.9kHz 93dB @ 30V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
