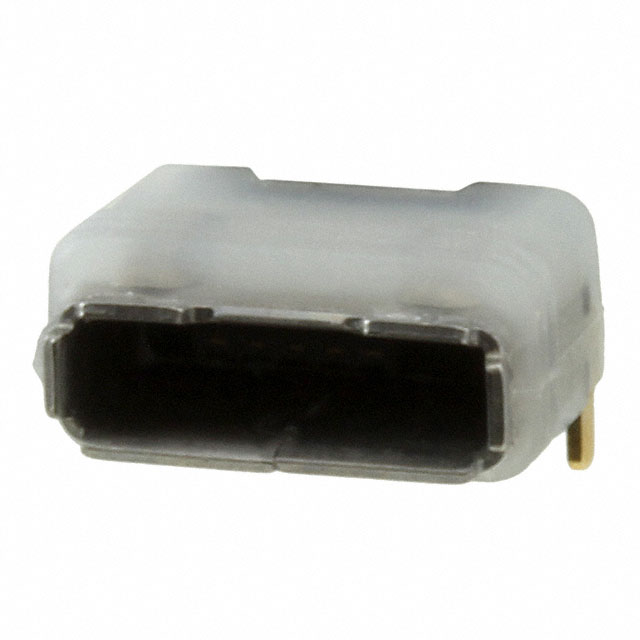

MUC-20PFFR-JS8C01
ObsoleteAmphenol LTW
CONN RCPT USB2.0 MICRO AB SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MUC-20PFFR-JS8C01 |
|---|---|
| Connector Type | USB - micro AB |
| Contact Finish | Gold |
| Features | Board Guide |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MUC-20PFFR Series
USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
