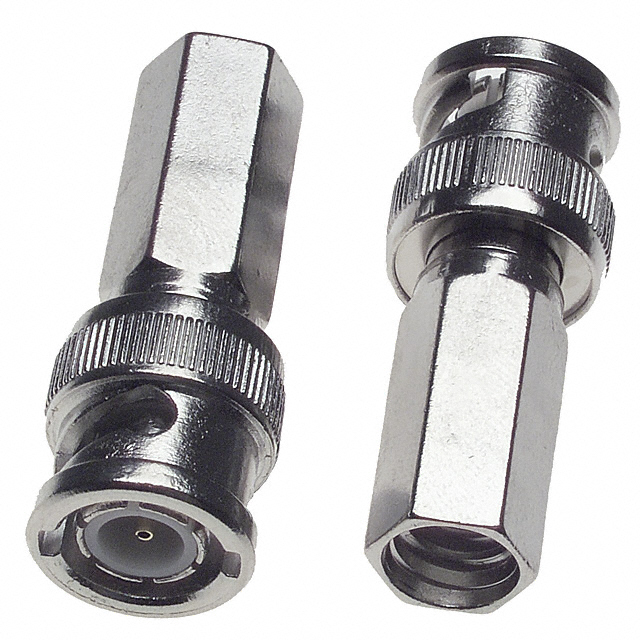

Specification	CPFI-UG88-3

Body Finish	Nickel
Body Material	Zinc
Cable Group	Belden 8218, RG-6 Quad Shield
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Field Installable
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Twist On
Voltage Rating	500 V

CPFIUG Series

Part	Fastening Type	Mounting Type	Shield Termination	Cable Group	Connector Style	Center Contact Material	Housing Color	Contact Termination	Frequency - Max	Connector Type	Features	Impedance	Number of Ports	Mating Cycles	Center Contact Plating	Dielectric Material	Body Material	Voltage Rating	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)
Cinch Connectivity Solutions AIM-Cambridge CPFI-UG88-3	Bayonet Lock	Free Hanging (In-Line)	Twist On	Belden 8218 RG-6 Quad Shield	BNC	Brass	Silver	Push On	4 GHz	Male Pin Plug	Field Installable	50 Ohm	1	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	Zinc	500 V	Nickel	-55 °C	85 °C
Cinch Connectivity Solutions AIM-Cambridge CPFIUG885	Bayonet Lock	Free Hanging (In-Line)	Twist On	RG-6	BNC	Phosphor Bronze	Silver	Push On	4 GHz	Male Pin Plug	Field Installable	50 Ohm	1	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	Zinc	500 V	Nickel	-55 °C	85 °C
Cinch Connectivity Solutions AIM-Cambridge CPFIUG882	Bayonet Lock	Free Hanging (In-Line)	Twist On	62 RG-59	BNC	Phosphor Bronze	Silver	Push On	4 GHz	Male Pin Plug	Field Installable	50 Ohm	1	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	Brass	500 V	Nickel	-55 °C	85 °C
Cinch Connectivity Solutions AIM-Cambridge CPFI-UG88-10	Bayonet Lock	Free Hanging (In-Line)	Twist On	62 Plenum RG-59	BNC	Phosphor Bronze	Silver	Push On	4 GHz	Male Pin Plug	Field Installable	50 Ohm	1	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	Brass	500 V	Nickel	-55 °C	85 °C
