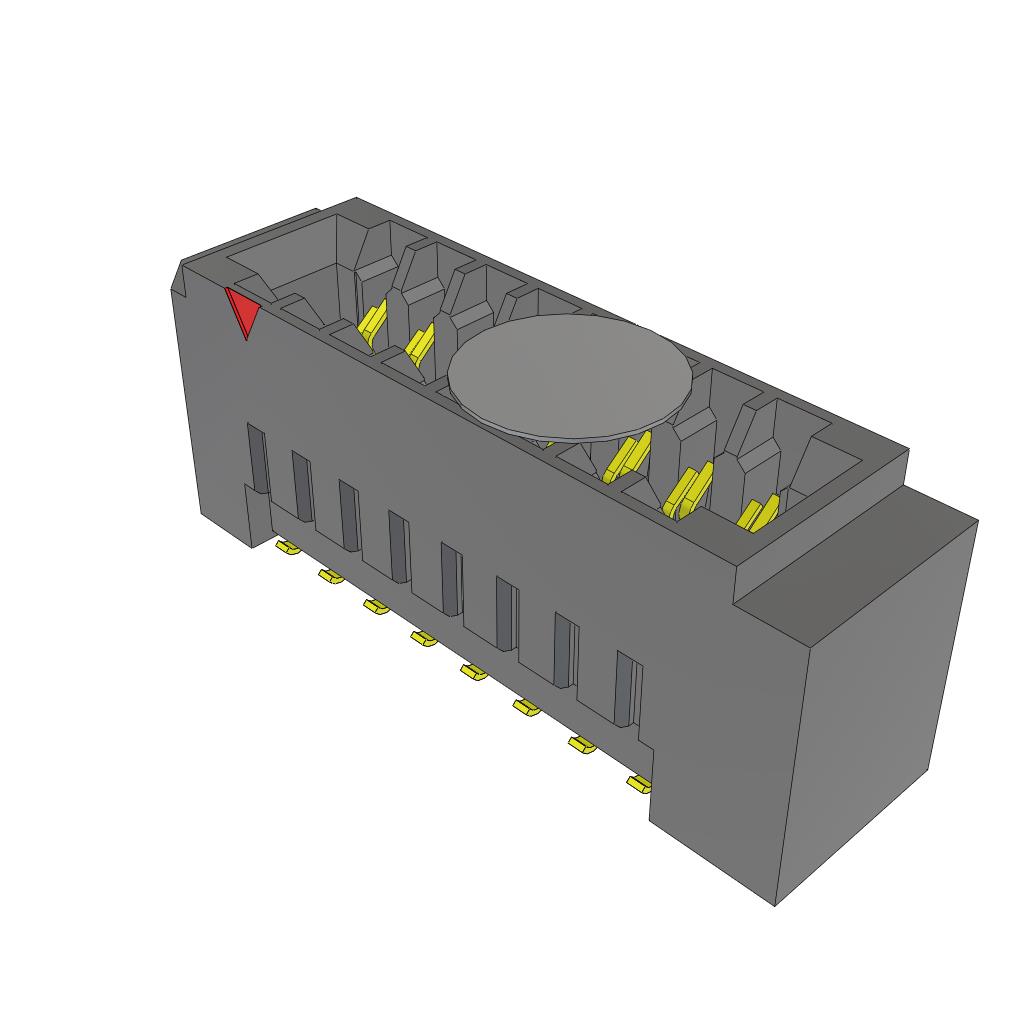

MEC2-08-02-L-DV-NP-WT-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FMALE 16POS 0.079

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FMALE 16POS 0.079

Technical Specifications

Parameters and characteristics for this part

Specification	MEC2-08-02-L-DV-NP-WT-K-TR

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Contact Type	Cantilever
Features	Pick and Place, Board Guide, Solder Retention
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Read Out	Dual
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Color	Pitch [x]	Pitch [x]	Features	Contact Material	Card Type	Read Out	Card Thickness	Card Thickness	Mounting Type	Contact Type	Number of Positions	Termination	Material - Insulation	Contact Finish
Samtec Inc. MEC2-08-01-L-DV-WT-K-TR	10 Áin	0.25 Ám	2	Female	-55 °C	125 °C	Black	0.079 in	2 mm	Board Guide Pick and Place Solder Retention	Beryllium Copper	Non Specified - Dual Edge	Dual	0.062 in	1.57 mm	Surface Mount	Cantilever	16	Solder	Liquid Crystal Polymer (LCP)	Gold
Samtec Inc. MEC2-08-02-L-DV-NP-WT-K-TR	10 Áin	0.25 Ám	2	Female	-55 °C	125 °C	Natural	0.079 in	2 mm	Board Guide Pick and Place Solder Retention	Beryllium Copper	Non Specified - Dual Edge	Dual	0.093 in	2.36 mm	Surface Mount	Cantilever	16	Solder	Liquid Crystal Polymer (LCP)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 4.48

General part information

16 Position Female Connector Non Specified - Dual Edge Gold 0.079" (2.00mm) Natural
