ZPDR-18V-S
ActiveJST Sales America Inc.

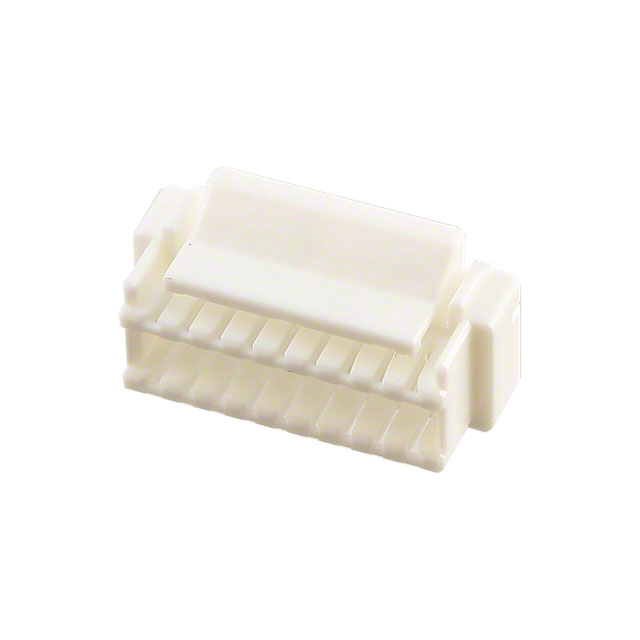

CONN RCPT HSG 18POS 1.50MM
Deep-Dive with AI
Search across all available documentation for this part.
ZPDR-18V-S
ActiveJST Sales America Inc.
CONN RCPT HSG 18POS 1.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZPDR-18V-S | ZPDR Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 18 | 10 - 30 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch [x] | 1.5 mm | 1.5 mm |
| Pitch [x] | 0.059 in | 0.059 in |
ZPDR Series
CONN RCPT HSG 20POS 1.50MM
| Part | Contact Termination | Contact Type | Note | Insulation Material | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. ZPDR-20V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 20 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-10V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 10 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-28V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 28 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-22V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 22 positions | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-26V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 26 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-30V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 30 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-18V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 18 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-12V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 12 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-14V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 14 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
JST Sales America Inc. ZPDR-24V-S | Crimp | Female Socket | Contacts Not Included | Polybutylene Terephthalate (PBT) | 1.5 mm | 0.059 in | 2 | Free Hanging (In-Line) | 24 | Natural | -25 °C | 85 °C | Latch Lock | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.25 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
Description
General part information
ZPDR Series
18 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
