2907051

Active

Phoenix Contact

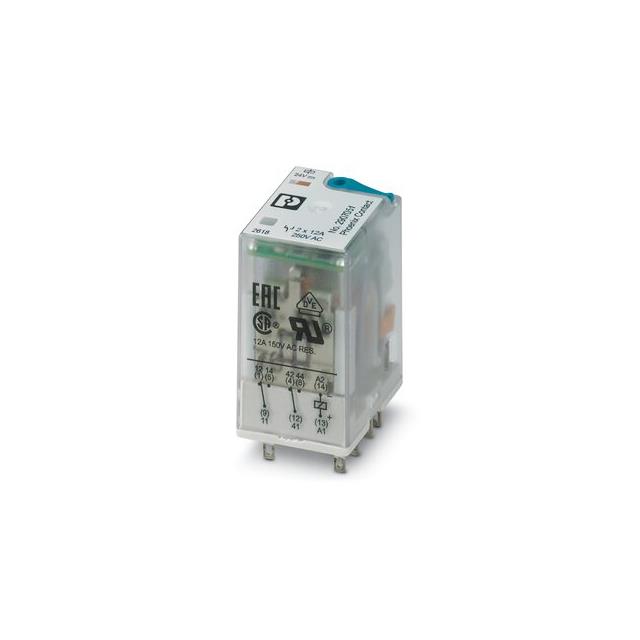

RELAY GEN PURPOSE DPDT 12A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 12A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources

Part	Coil Resistance	Operate Time	Termination Style	Switching Voltage	Approval Agency	Contact Material	Coil Voltage	Release Time	Relay Type	Contact Form	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Mounting Type	Coil Current
Phoenix Contact 2907054	630 Ohms	13 ms	Plug In	250 VAC, 250 VDC	cULus, EAC, UL, VDE	Silver Nickel (AgNi)	24 VDC	3 ms	General Purpose	4PDT (4 Form C)	Non Latching	-40 °C	70 °C	6 A	Socketable	38 mA
Phoenix Contact 2907051	630 Ohms	13 ms	Plug In	250 VAC, 250 VDC	cULus, EAC, UL, VDE	Silver Nickel (AgNi)	24 VDC	3 ms	General Purpose	DPDT (2 Form C)	Non Latching	-40 °C	70 °C	12 A	Socketable	38 mA
