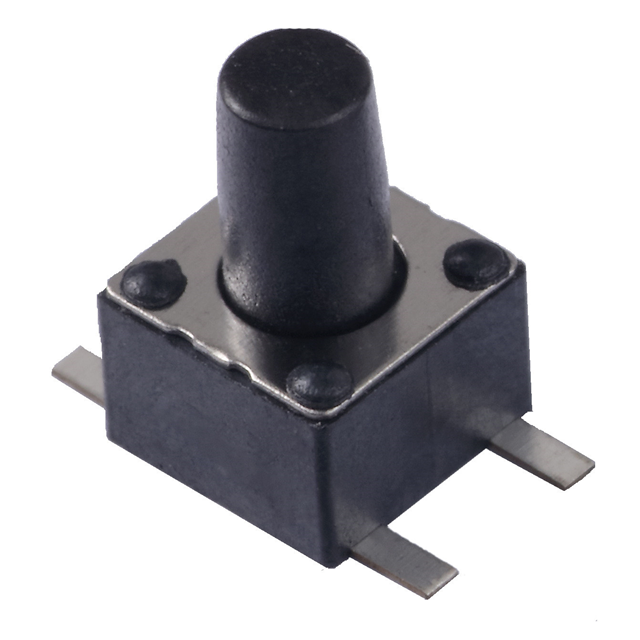

223CMVBAR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	223CMVBAR	223CMV Series

Actuator Height off PCB, Vertical	-	3.8 mm
Actuator Height off PCB, Vertical [z]	7 mm	7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	4.5 mm	4.5 mm
Outline [y]	4.5 mm	4.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.2 mm	0.2 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Contact Rating @ Voltage	Actuator Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Switch Travel	Actuator Orientation	Actuator Height off PCB, Vertical	Outline [x]	Outline [y]	Circuit	Switch Function	Termination Style	Features	Mounting Type	Actuator Height off PCB, Vertical [z]
CTS Electrocomponents 223CMVAAR	0.05 A, 12 VDC	Standard	1000000 Cycles	85 °C	-40 °C	Non-Illuminated	0.2 mm	Top Actuated	3.8 mm	4.5 mm	4.5 mm	SPST-NO	Off-Mom	Gull Wing	Tactile Feedback	Surface Mount
CTS Electrocomponents 223CMVBAR	0.05 A, 12 VDC	Standard	1000000 Cycles	85 °C	-40 °C	Non-Illuminated	0.2 mm	Top Actuated		4.5 mm	4.5 mm	SPST-NO	Off-Mom	Gull Wing	Tactile Feedback	Surface Mount	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10500	$ 0.15

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
