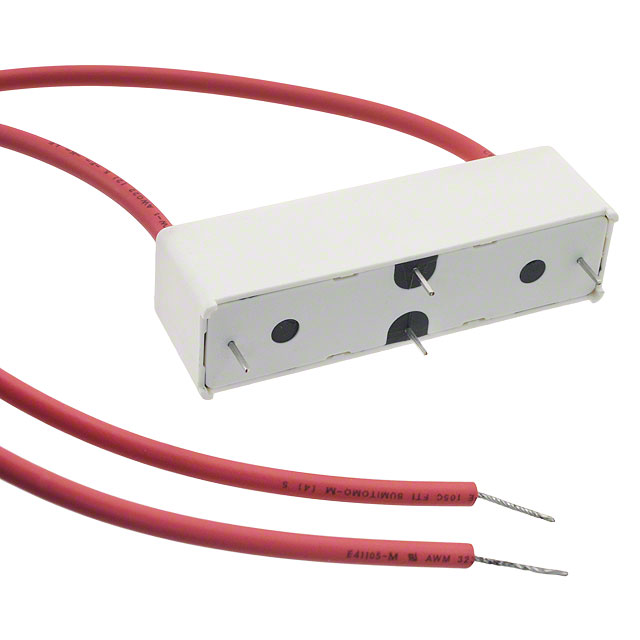

DAR71210F

Active

Sensata Technologies

RELAY REED SPST-NO 3A 12V

Search across all available documentation for this part.

Active

Sensata Technologies

RELAY REED SPST-NO 3A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DAR71210F	DAR71210 Series

Coil Current	80 mA	80 mA
Coil Resistance	150 Ohms	150 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Rhodium (Rh)	Rhodium (Rh)
Contact Rating (Current)	3 A	3 A
Mounting Type	Through Hole	Through Hole, Chassis Mount
Must Operate Voltage	9 VDC	9 VDC
Must Release Voltage	1.25 VDC	1.25 VDC
Operate Time	3 ms	3 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	2 ms	2 ms
Switching Voltage	1000 VDC, 1000 VAC	1000 VDC
Termination Style	PC Pin, Wire Leads	PC Pin, Wire Leads, Quick Connect - 0.250" (6.3mm)

RELAY REED SPST-NO 3A 12V

Part	Contact Form	Contact Rating (Current)	Release Time	Must Release Voltage	Mounting Type	Coil Resistance	Contact Material	Operate Time	Coil Current	Coil Type	Switching Voltage	Must Operate Voltage	Coil Voltage	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Sensata Technologies DAR71210F	SPST-NO (1 Form A)	3 A	2 ms	1.25 VDC	Through Hole	150 Ohms	Rhodium (Rh)	3 ms	80 mA	Non Latching	1000 VDC, 1000 VAC	9 VDC	12 VDC	PC Pin, Wire Leads	-20 C	70 °C
Sensata Technologies DAR71210S	SPST-NO (1 Form A)	3 A	2 ms	1.25 VDC	Chassis Mount	150 Ohms	Rhodium (Rh)	3 ms	80 mA	Non Latching	1000 VDC, 1000 VAC	9 VDC	12 VDC	Quick Connect - 0.250" (6.3mm)	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPST-NO 3A 12V

Technical documentation and resources

No documents available
