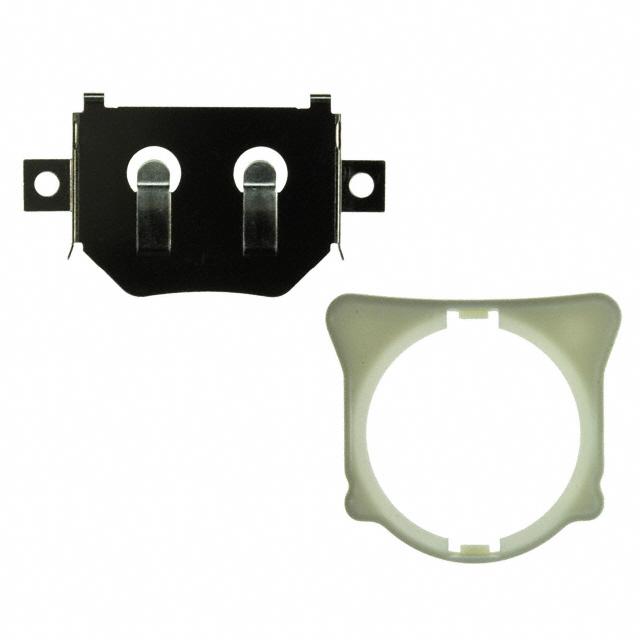

BHX1-2325-SM
ActiveMPD (Memory Protection Devices)
BATTERY RETAINER COIN 23MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BHX1-2325-SM
ActiveMPD (Memory Protection Devices)
BATTERY RETAINER COIN 23MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BHX1-2325-SM |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size [diameter] | 23 mm |
| Battery Series | 2325 |
| Height Above Board | 3.55 mm |
| Height Above Board | 0.14 in |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Style | Retainer |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.99 | |
| 10 | $ 0.84 | |||
| 50 | $ 0.73 | |||
| 100 | $ 0.69 | |||
| 300 | $ 0.64 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
| 2500 | $ 0.51 | |||
| 5000 | $ 0.47 | |||
Description
General part information
BHX1-2325 Series
Battery Retainer Coin, 23.0mm 1 Cell SMD (SMT) Tab
