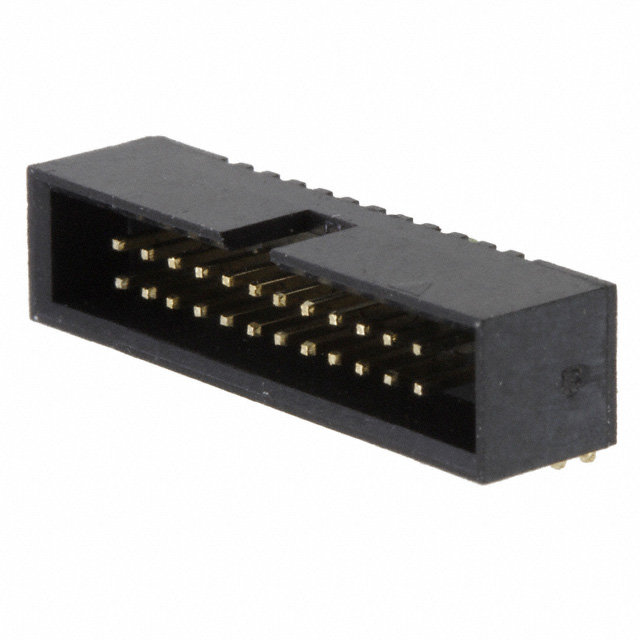

3220-24-0200-00

Obsolete

CnC Tech, LLC

CONN HEADER R/A 24POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC Header Mating Guide Datasheet +1

3220-24-0200-00

Obsolete

CnC Tech, LLC

CONN HEADER R/A 24POS 1.27MM

Deep-Dive with AI

DocumentsIDC Header Mating Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3220-24-0200-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.083 in
Contact Length - Post	2.11 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.201 "
Insulation Height [z]	5.1 mm
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

3220-24 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Shrouding	Connector Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Material	Termination	Number of Positions Loaded	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Style	Material Flammability Rating	Mounting Type	Fastening Type	Contact Shape	Insulation Color	Insulation Height	Contact Finish Thickness - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish - Mating
CnC Tech, LLC 3220-24-0200-99	0.05 in	1.27 mm	50 VAC	Shrouded - 4 Wall	Header	Keying Slot	2.03 µm	80 µin	0.201 "	5.1 mm	Brass	Solder	All	Nylon 6T Polyamide (PA6T)	0.083 in	2.11 mm	Male Pin	2	0.05 in	1.27 mm	-40 °C	105 ░C	24	Board to Cable/Wire	UL94 V-0	Through Hole Right Angle	Push-Pull	Square
CnC Tech, LLC 3220-24-0300-00	0.05 in	1.27 mm	50 VAC	Shrouded - 4 Wall	Header	Keying Slot			0.213 in		Brass	Solder	All	Nylon 9T Polyamide (PA9T)			Male Pin	2	0.05 in	1.27 mm	-40 °C	105 ░C	24	Board to Cable/Wire	UL94 V-0	Surface Mount	Push-Pull	Square	Black	5.4 mm	Flash	Gold	Flash	Gold
CnC Tech, LLC 3220-24-0300-99	0.05 in	1.27 mm	50 VAC	Shrouded - 4 Wall	Header	Keying Slot	2.03 µm	80 µin	0.213 in		Brass	Solder	All	Nylon 6T Polyamide (PA6T)			Male Pin	2	0.05 in	1.27 mm	-40 °C	105 ░C	24	Board to Cable/Wire	UL94 V-0	Surface Mount	Push-Pull	Square	Black	5.4 mm
CnC Tech, LLC 3220-24-0200-00	0.05 in	1.27 mm	50 VAC	Shrouded - 4 Wall	Header	Keying Slot			0.201 "	5.1 mm	Brass	Solder	All	Nylon 9T Polyamide (PA9T)	0.083 in	2.11 mm	Male Pin	2	0.05 in	1.27 mm	-40 °C	105 ░C	24	Board to Cable/Wire	UL94 V-0	Through Hole Right Angle	Push-Pull	Square	Black				Flash	Gold
CnC Tech, LLC 3220-24-0100-99	0.05 in	1.27 mm	50 VAC	Shrouded - 4 Wall	Header	Keying Slot	2.03 µm	80 µin	0.213 in		Brass	Solder	All	Nylon 6T Polyamide (PA6T)	0.083 in	2.11 mm	Male Pin	2	0.05 in	1.27 mm	-40 °C	105 ░C	24	Board to Cable/Wire	UL94 V-0	Through Hole	Push-Pull	Square		5.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3220-24 Series

Connector Header Through Hole, Right Angle 24 position 0.050" (1.27mm)

Documents

Technical documentation and resources

IDC Header Mating Guide

Datasheet

IDC, Flat Ribbon Cable Mating Chart

Datasheet
