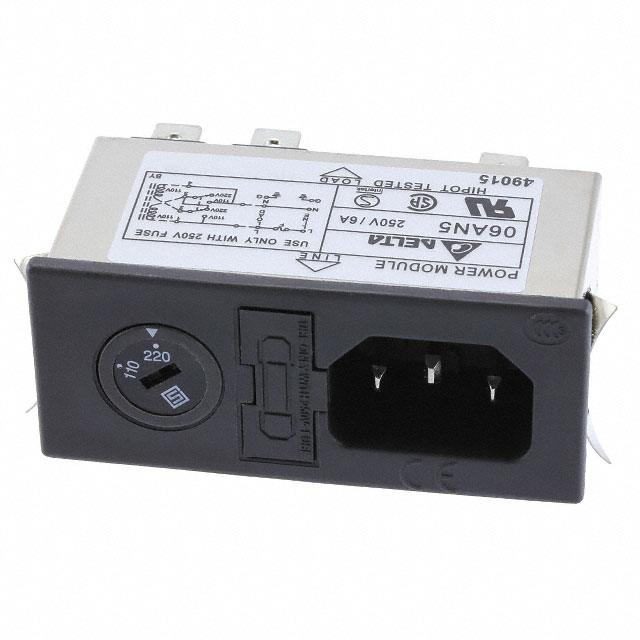

06AN5

Active

Delta Electronics

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 6A FUSE/VOLTAGE SELECTOR ST 1 PORT

Search across all available documentation for this part.

Active

Delta Electronics

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 6A FUSE/VOLTAGE SELECTOR ST 1 PORT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	20	$ 16.35

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Specification	06AN5	06AN Series

Accomodates a Fuse	True	True
Approval Agency	SEMKO, UL, CSA, CE	SEMKO, UL, CSA, CE
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	66 mm	66 mm
Panel Cutout Dimensions [y]	27 mm	27 mm
Panel Thickness [Max]	1.78 mm	1.78 mm
Panel Thickness [Max]	0.07 in	0.07 in
Panel Thickness [Min]	0.04 in	0.04 in
Panel Thickness [Min]	1.02 mm	1.02 mm
Switch Features	-	Switch On-Off
Termination	Quick Connect	Quick Connect

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Features	Connector Style	Filter Type	Mounting Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Fuse Holder, Drawer	Approval Agency	Accomodates a Fuse	Features	Termination	Connector Type	Material Flammability Rating
Delta Electronics 06AN3D	27 mm	66 mm	Switch On-Off	IEC 320-C14	Unfiltered - Commercial	Panel Mount, Snap-In	0.04 in	1.02 mm	1.78 mm	0.07 in	Fuse Holder	CE, CSA, SEMKO, UL		Voltage Selector	Quick Connect	Receptacle, Male Blades - Module	UL94 V-0
Delta Electronics 06AN5	27 mm	66 mm		IEC 320-C14	Unfiltered - Commercial	Panel Mount, Snap-In	0.04 in	1.02 mm	1.78 mm	0.07 in	Fuse Holder	CE, CSA, SEMKO, UL		Voltage Selector	Quick Connect	Receptacle, Male Blades - Module	UL94 V-0
