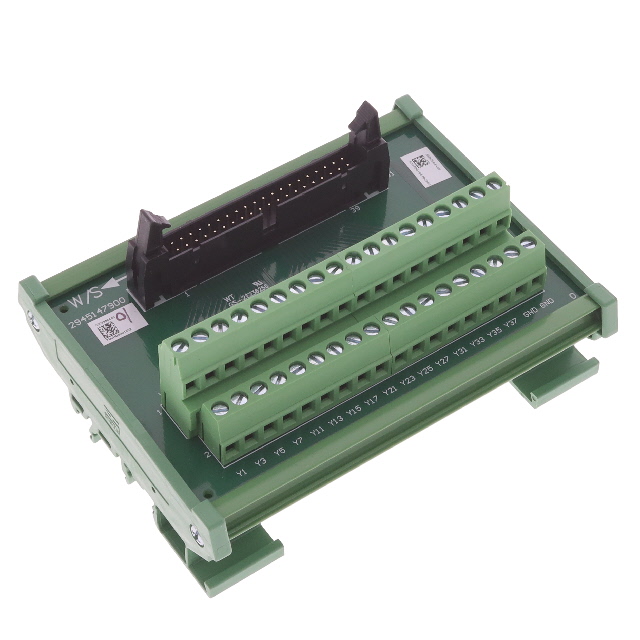

UB-10-OT32A

Delta Electronics/Industrial Automation

I/O TERMINAL MODULE - 32 POINT D

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

I/O TERMINAL MODULE - 32 POINT D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 57.94

General part information

32 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male

Technical documentation and resources

No documents available

Specification	UB-10-OT32A	UB-10 Series

Control Side Cable Retainer	Latches	Latches
Control Side Connection [custom]	Male	Male
Control Side Connection [custom]	Rectangular	Rectangular
Features	-	Relays
Length	113 mm	87 - 113 mm
Length	4.449 in	3.425 - 4.449 in
Positions / Poles	32	16 - 32
Process Side Connection	Terminal Blocks - Screw Connection	Terminal Blocks - Screw Connection
Voltage - Rated	24 VDC	24 VDC
Width [y]	87 mm	67 - 87 mm
Width [y]	3.425 in	2.638 - 3.425 in
Wire Gauge	-	24 AWG
Wire Gauge	-	22 AWG

Part	Features	Control Side Connection [custom]	Control Side Connection [custom]	Length	Length	Voltage - Rated	Process Side Connection	Control Side Cable Retainer	Positions / Poles	Width [y]	Width [y]	Wire Gauge [Max]	Wire Gauge [Min]
Delta Electronics/Industrial Automation UB-10-OR16B	Relays	Male	Rectangular	113 mm	4.449 in	24 VDC	Terminal Blocks - Screw Connection	Latches	16	87 mm	3.425 in
Delta Electronics/Industrial Automation UB-10-ID16A		Male	Rectangular	87 mm	3.425 in		Terminal Blocks - Screw Connection	Latches	16	67 mm	2.638 in	24 AWG	22 AWG
Delta Electronics/Industrial Automation UB-10-OT32A		Male	Rectangular	113 mm	4.449 in	24 VDC	Terminal Blocks - Screw Connection	Latches	32	87 mm	3.425 in
