1N2806RB
ActiveZENER DIODE SINGLE 3-PIN(2+TAB) 8.2V, 5%, 0.4OHM, 50000MW TO-3 TRAY
Deep-Dive with AI
Search across all available documentation for this part.
1N2806RB
ActiveZENER DIODE SINGLE 3-PIN(2+TAB) 8.2V, 5%, 0.4OHM, 50000MW TO-3 TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N2806RB | 1N2806RB-Zener-Diode Series |
|---|---|---|
| - | - | |
| Current - Reverse Leakage @ Vr | 50 µA | 50 µA |
| Impedance (Max) (Zzt) [Max] | 0.4 Ohms | 0.4 Ohms |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 347 °F | 347 °F |
| Operating Temperature [Min] | -65 ░C | -65 ░C |

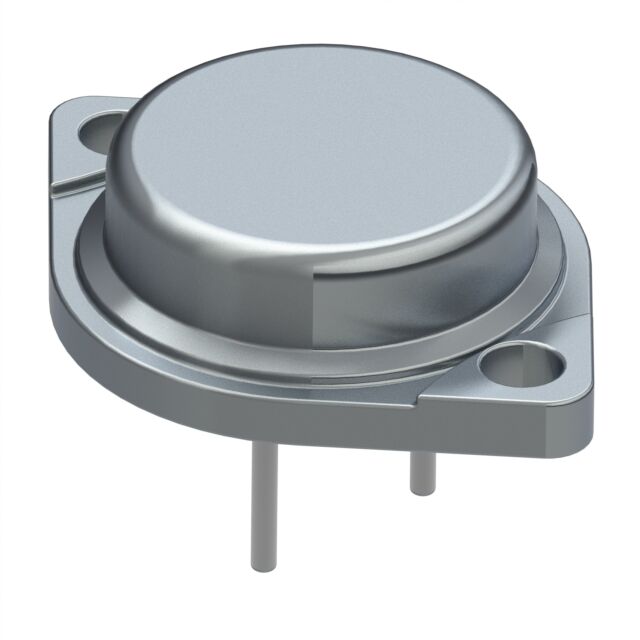

| Package / Case | TO-204AD | TO-204AD |
| Power - Max [Max] | 50 W | 50 W |
| Tolerance | 5 % | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 8.2 V | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 83.21 | |
| Microchip Direct | N/A | 1 | $ 89.61 | |
| Newark | Each | 100 | $ 83.21 | |
| 500 | $ 80.01 | |||
1N2806RB-Zener-Diode Series
Zener Diode Single 3-Pin(2+Tab) 8.2V, 5%, 0.4Ohm, 50000mW TO-3 Tray
| Part | Voltage - Zener (Nom) (Vz) | Package / Case | Power - Max [Max] | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Mounting Type | Impedance (Max) (Zzt) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N2806RB | ||||||||||
Microchip Technology 1N2806RB | 8.2 V | TO-204AD | 50 W | 50 µA | 1.5 V | Through Hole | 0.4 Ohms | -65 ░C | 347 °F | 5 % |
Description
General part information
1N2806RB-Zener-Diode Series
This series of high power 50W Zener diodes, JEDEC registered 1N2804B through 1N2846B and 1N4557B through 1N4564B, provide voltage regulation in values from 3.9V to 200V broad range of voltages. They may be operated up to 50W with adequate mounting heat sinking due to their low thermal resistance. These Zeners are also available in JAN, JANTX and JANTXV military qualifications.
