Q2-Z-1-01-SS200FT

Active

Qualtek

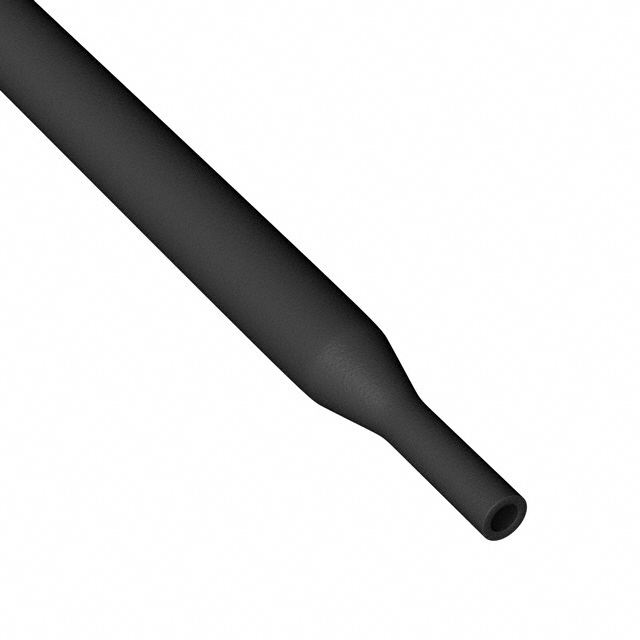

HEATSHRINK 1" X 200' BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1" X 200' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-1-01-SS200FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length [x]	61 m
Length [x]	200 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Features	Type	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Length [x]	Length [x]	Color	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio
Qualtek Q2-Z-1-01-SS200FT	Flame Retardant	Tubing Flexible	-55 °C	125 °C	-50 °F -10 °C	40 °C	144 Months	61 m	200 ft	Black	70 °C	1 in	25.4 mm	Polyolefin (PO)	0.89 mm	0.035 in	0.5 in	12.7 mm	2 to 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.33

General part information

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 2 to 1 Black 200.0' (61.0m)
