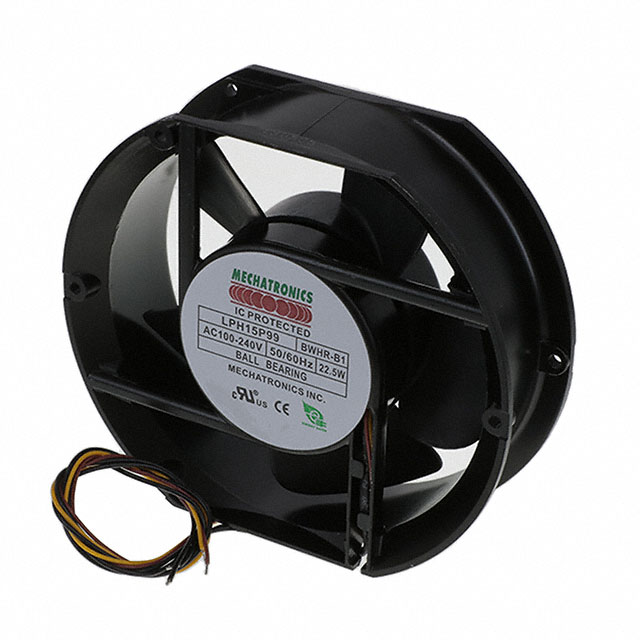

LPH15P99-BWHR-B1

Active

Mechatronics Fan Group

EC FAN AXIAL 172 X 150 X 51MM W/

Search across all available documentation for this part.

Active

Mechatronics Fan Group

EC FAN AXIAL 172 X 150 X 51MM W/

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Rectangular/Rounded - 172mm L x 152mm H Ball 228.0 CFM (6.38m³/min) 3 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LPH15P99-BWHR-B1	LPH15 Series

Air Flow	6.38 mł/min	6.38 mł/min
Air Flow	228 CFM	228 CFM
Approval Agency	-	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.2 A	0.2 A
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), Auto Restart, Electronic Commutation (EC)	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach), Parylene Coating
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	55 dB	55 dB
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-40 °C
Operating Temperature	-	-40 °C
Power (Watts)	22.5 W	22.5 W
RPM	3200 RPM	3200 RPM
Size / Dimension [custom]	Rectangular/Rounded	Rectangular/Rounded
Size / Dimension [x]	172 mm	172 mm
Size / Dimension [y]	152 mm	152 mm
Static Pressure	0.6 in H2O	0.6 in H2O
Static Pressure	149.5 Pa	149.5 Pa
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated [Max]	240 VAC	240 VAC
Voltage - Rated [Min]	100 VAC	100 VAC
Voltage Range [Max]	264 VAC	264 VAC
Voltage Range [Min]	90 VAC	90 VAC
Weight	725.7 g	725.7 g
Weight	1.6 lbs	1.6 lbs
Width [y]	51.5 mm	51.5 mm

FAN AXIAL 172X51.5MM 100-240VAC

Part	Width [y]	Fan Type	Static Pressure	Static Pressure	Voltage - Rated [Min]	Voltage - Rated [Max]	Material - Blade	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Noise	Weight	Weight	Features	Current Rating (Amps)	Termination	RPM	Bearing Type	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [custom]	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection
Mechatronics Fan Group LPH15P99-BWHR	51.5 mm	Tubeaxial	0.6 in H2O	149.5 Pa	100 VAC	240 VAC	Plastic	CE, cUL, TUV, UL	70 °C	70 °C	-40 °C	-40 °C	22.5 W	55 dB	725.7 g	1.6 lbs	Auto Restart, Electronic Commutation (EC)	0.2 A	2 Wire Leads	3200 RPM	Ball	Aluminum	172 mm	152 mm	Rectangular/Rounded	6.38 mł/min	228 CFM
Mechatronics Fan Group LPH15P99-BWHR-B1	51.5 mm	Tubeaxial	0.6 in H2O	149.5 Pa	100 VAC	240 VAC	Plastic						22.5 W	55 dB	725.7 g	1.6 lbs	Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)	0.2 A	3 Wire Leads	3200 RPM	Ball	Aluminum	172 mm	152 mm	Rectangular/Rounded	6.38 mł/min	228 CFM	90 VAC	264 VAC
Mechatronics Fan Group LPH15P99-BWHR-PC	51.5 mm	Tubeaxial	0.6 in H2O	149.5 Pa	100 VAC	240 VAC	Plastic						22.5 W	55 dB	725.7 g	1.6 lbs	Auto Restart, Electronic Commutation (EC), Parylene Coating	0.2 A	2 Wire Leads	3200 RPM	Ball	Aluminum	172 mm	152 mm	Rectangular/Rounded	6.38 mł/min	228 CFM	90 VAC	264 VAC	IP55 - Dust Protected, Water Resistant
