ELVH03100

Active

AMPHENOL PCD

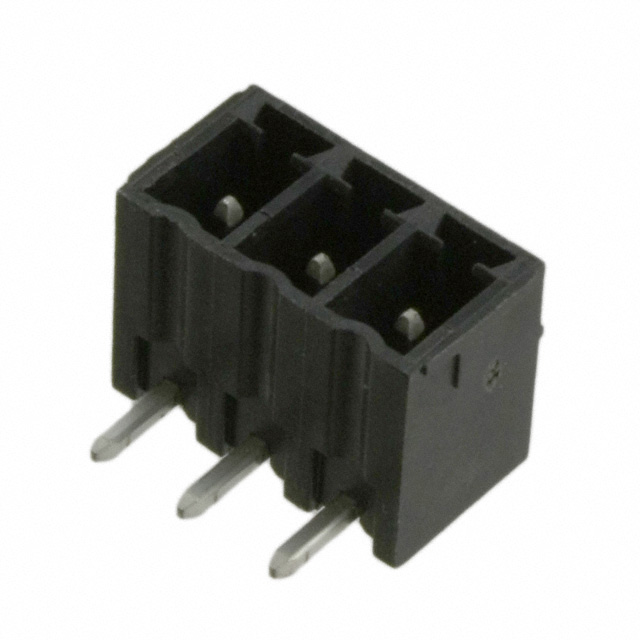

TERM BLOCK HDR 3POS 90DEG 3.81MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 3POS 90DEG 3.81MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELVH03100

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	12 A
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.273 in
Insulation Height	6.93 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature	125 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Material Flammability Rating	Termination Style	Pitch [x]	Pitch [x]	Contact Material	Type	Contact Tail Length	Contact Tail Length	Voltage - UL	Positions Per Level	Insulation Height	Insulation Height	Current - UL	Number of Levels	Operating Temperature	Color	Mounting Type	Header Orientation	Housing Material	Contact Mating Finish
AMPHENOL PCD ELVH031G0E
AMPHENOL PCD ELVH03100	UL94 V-0	Solder	0.15 in	3.81 mm	Brass	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	300 V	3	0.273 in	6.93 mm	12 A	1	125 °C	Black	Through Hole	90° Right Angle	Polyamide (PA46) Nylon 4/6	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.80

General part information

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
