BFP780H6327XTSA1

Obsolete

Infineon Technologies

RF TRANS NPN 6.1V 900MHZ SOT343

Search across all available documentation for this part.

Obsolete

Infineon Technologies

RF TRANS NPN 6.1V 900MHZ SOT343

Technical Specifications

Parameters and characteristics for this part

Specification	BFP780H6327XTSA1

Current - Collector (Ic) (Max) [Max]	120 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	85
Frequency - Transition	900 MHz
Gain	27 dB
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f) [Max]	2.4 dB
Noise Figure (dB Typ @ f) [Min]	1.2 dB
Operating Temperature	150 °C

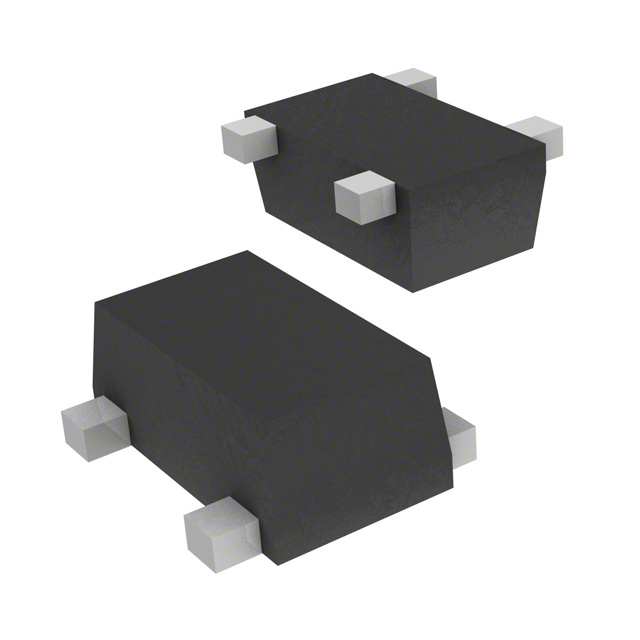

Package / Case	SC-82A, SOT-343
Power - Max [Max]	600 mW
Transistor Type	NPN

Part	Gain	Transistor Type	Power - Max [Max]	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Current - Collector (Ic) (Max) [Max]	Noise Figure (dB Typ @ f) [Max]	Noise Figure (dB Typ @ f) [Min]	Mounting Type	Operating Temperature
Infineon Technologies BFP780H6327XTSA1	27 dB	NPN	600 mW	900 MHz	85	SC-82A SOT-343	120 mA	2.4 dB	1.2 dB	Surface Mount	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 6.1V 120mA 900MHz 600mW Surface Mount PG-SOT343-4-1
