IL19-SE-H05-3150-200

Active

TE Connectivity Raychem Cable Protection

CRD 16AWG IEC320-C19 - CBL 6.56'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CRD 16AWG IEC320-C19 - CBL 6.56'

Technical Specifications

Parameters and characteristics for this part

Specification	IL19-SE-H05-3150-200

1st Connector	IEC 320-C19
2nd Connector	Cable
Approval Agency Marking	SAA, CB, KEMA
Approved Countries	New Zealand, Australia, Netherlands
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	16 A
Features	Locking
Length [x]	2 m
Length [x]	6.56 ft
Number of Conductors	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector	Number of Conductors	Voltage Rating	1st Connector	Approved Countries	Length [x]	Length [x]	Style	Cord Type	Shielding	Color	Features	Approval Agency Marking	Current Rating (Amps)
TE Connectivity Raychem Cable Protection IL19-SE-H05-3150-200	70 °C	-25 °C	Cable	3	250 VAC	IEC 320-C19	Australia Netherlands New Zealand	2 m	6.56 ft	Female Sockets (Slots) to Leads	H05VV-F	Unshielded	Black	Locking	CB KEMA SAA	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

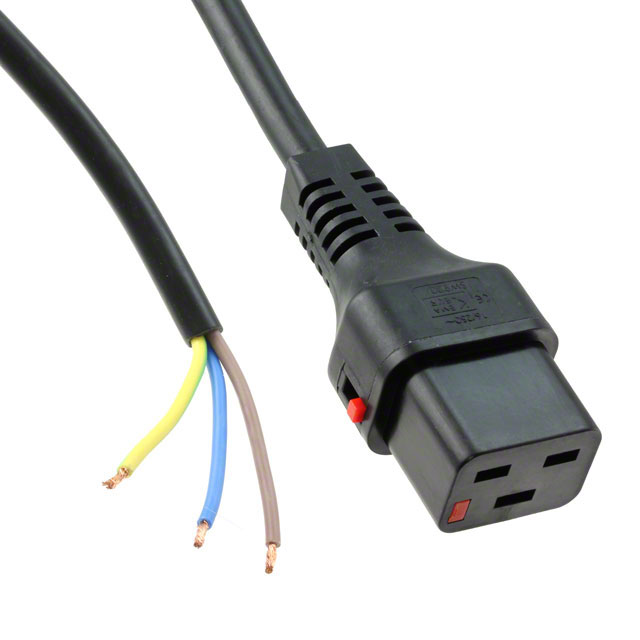

6.56' (2.00m) Power Cord Black IEC 320-C19 To Cable H05VV-F
