ELFF12230

Active

AMPHENOL PCD

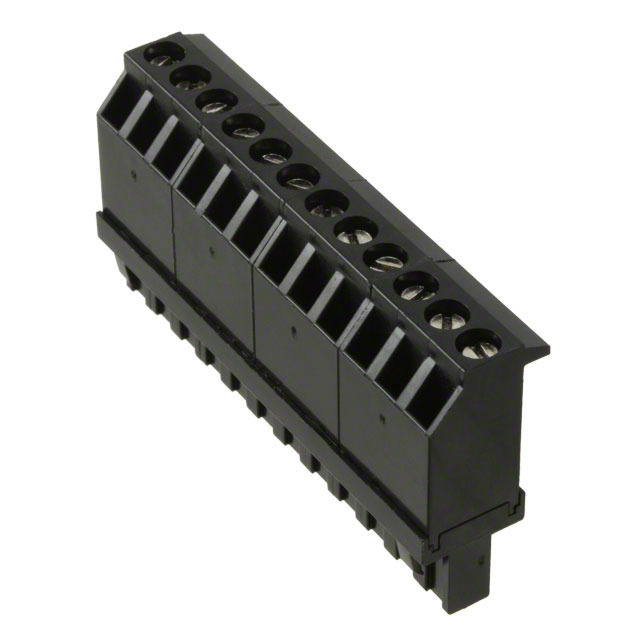

TERM BLOCK PLUG 12POS 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 12POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFF12230

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Features	Retention Latches (Wire Side)
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	30.94 mm
Insulation Height	1.218 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Plug Wire Entry	90 °
Positions Per Level	12
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG	12 AWG
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Strip Length	12.45 mm, 7.87 mm

Part	Color	Number of Positions	Plug Wire Entry	Torque - Screw	Torque - Screw	Number of Levels	Operating Temperature	Wire Strip Length	Contact Mating Finish	Voltage - UL	Mounting Type	Termination Style	Contact Material	Pitch [x]	Pitch [x]	Type	Insulation Height	Insulation Height	Material Flammability Rating	Positions Per Level	Housing Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Features
AMPHENOL PCD ELFF12240	Black	12	270 °	0.79 Nm	7 Lb-In	1	105 C	7.87 mm 12.45 mm	Tin	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Copper Alloy	0.2 in	5.08 mm	Plug Female Sockets	30.94 mm	1.218 in	UL94 V-0	12	Polyphenylene Oxide (PPO)	26 AWG	12 AWG	14 AWG
AMPHENOL PCD ELFF12230	Black	12	90 °	0.79 Nm	7 Lb-In	1	105 C	7.87 mm 12.45 mm	Tin	300 V	Free Hanging (In-Line)	Screw - Rising Cage Clamp	Copper Alloy	0.2 in	5.08 mm	Plug Female Sockets	30.94 mm	1.218 in	UL94 V-0	12	Polyphenylene Oxide (PPO)	26 AWG	12 AWG	14 AWG	Retention Latches (Wire Side)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.47

General part information

12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
