5059-0-15-15-34-27-04-0

Active

Mill-Max Manufacturing Corp.

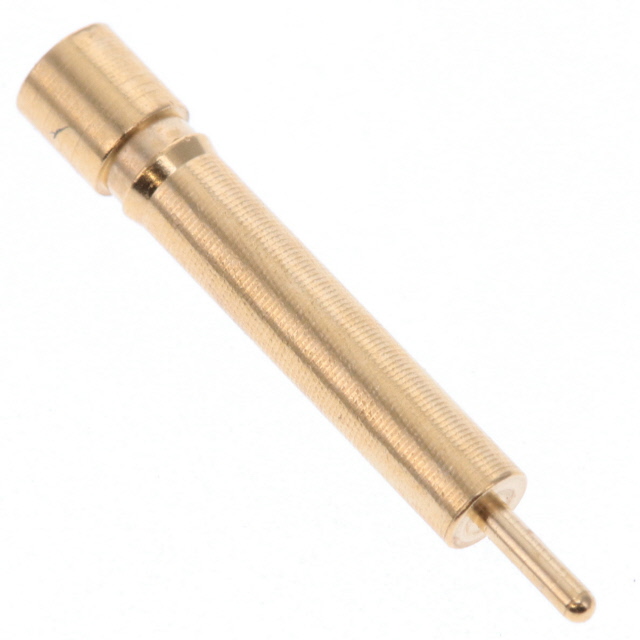

CONN RECEPT PIN .032-.046" .125"

Deep-Dive with AI

Search across all available documentation for this part.

5059-0-15-15-34-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .032-.046" .125"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5059-0-15-15-34-27-04-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Length - Overall [x]	16.64 mm
Length - Overall [x]	0.655 in
Mounting Hole Diameter [diameter]	0.09 in
Mounting Hole Diameter [diameter]	2.29 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	0.495 in
Socket Depth	12.57 mm
Tail Diameter	0.03 in
Tail Diameter	0.76 mm
Tail Type	Standard Tail
Termination	Press-Fit

5059-0 Series

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter	Tail Diameter	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 5059-0-15-01-34-27-04-0	0.09 in	2.29 mm	Standard Tail	0.495 in	12.57 mm	1.63 mm	0.064 in	Press-Fit	0.76 Ám	30 Áin	-55 °C	125 °C	Beryllium Copper	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	16.64 mm	0.655 in
Mill-Max Manufacturing Corp. 5059-0-15-01-34-14-04-0	0.09 in	2.29 mm	Standard Tail	0.495 in	12.57 mm	1.63 mm	0.064 in	Press-Fit	0.25 Ám	10 Áin	-55 °C	125 °C	Beryllium Copper	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	16.64 mm	0.655 in
Mill-Max Manufacturing Corp. 5059-0-15-80-34-27-04-0	0.09 in	2.29 mm	Standard Tail	0.132 in	3.35 mm	1.63 mm	0.064 in	Press-Fit	0.76 Ám	30 Áin	-55 °C	125 °C	Beryllium Copper	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	16.64 mm	0.655 in
Mill-Max Manufacturing Corp. 5059-0-15-15-34-27-04-0	0.09 in	2.29 mm	Standard Tail	0.495 in	12.57 mm	1.63 mm	0.064 in	Press-Fit	0.76 Ám	30 Áin	-55 °C	125 °C	Beryllium Copper	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	16.64 mm	0.655 in
Mill-Max Manufacturing Corp. 5059-0-15-80-34-80-04-0	0.09 in	2.29 mm	Standard Tail	0.132 in	3.35 mm	1.63 mm	0.064 in	Press-Fit	5.08 Ám	200 Áin	-55 °C	125 °C	Beryllium Copper	Tin				0.03 in	0.76 mm	16.64 mm	0.655 in	0.56 mm	0.81 mm	0.022 "	0.032 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.70
		10	$ 2.06
		25	$ 1.86
		50	$ 1.72
		100	$ 1.59
		250	$ 1.44
		500	$ 1.34
		1000	$ 1.25
		2500	$ 1.24

Description

General part information

5059-0 Series

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit
