R114186000W

Active

Radiall USA, Inc.

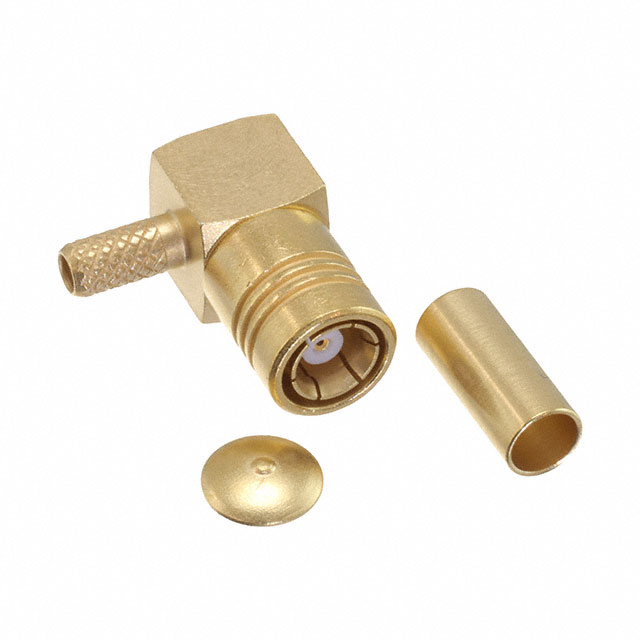

SMB F RA F CR 2.6/50+75S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F RA F CR 2.6/50+75S

Technical Specifications

Parameters and characteristics for this part

Specification	R114186000W

Body Finish	Gold
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Shield Termination	Center Contact Material	Dielectric Material	Impedance	Includes	Center Contact Plating	Cable Group	Connector Type	Frequency - Max [Max]	Body Material	Contact Termination	Fastening Type	Voltage Rating	Mounting Type	Housing Color	Body Finish	Mating Cycles	Connector Style
Radiall USA, Inc. R114186000W	-65 ░C	165 °C	1	Crimp	Beryllium Copper	Polytetrafluoroethylene (PTFE)	50 Ohms	1 Connector 1 End Cap	Gold	179 316 RG-174	Female Socket Plug	4 GHz	Brass	Crimp	Snap-On	335 V	Free Hanging (In-Line) Right Angle	Gold	Gold	500	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
