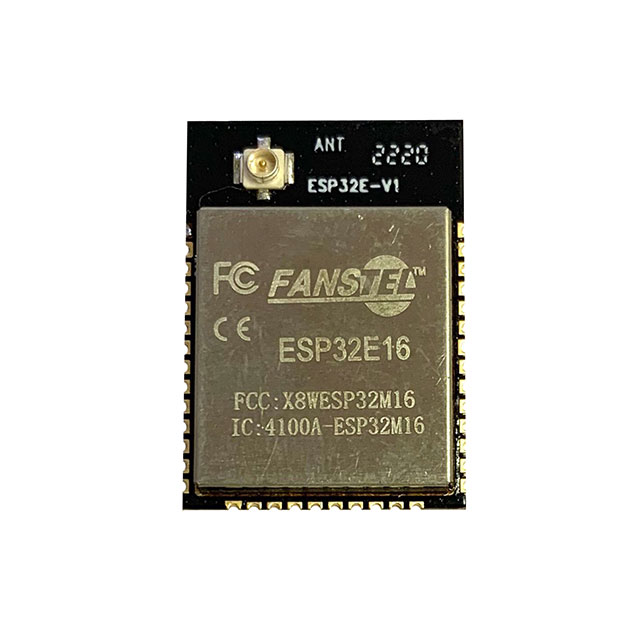

ESP32E16

Active

Fanstel Corp.

WI-FI MODULES, 16MB FLASH, U.FL

Search across all available documentation for this part.

Active

Fanstel Corp.

WI-FI MODULES, 16MB FLASH, U.FL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32E16	ESP32 Series

Antenna Type	Antenna Not Included, U.FL	PCB Trace, Antenna Not Included, U.FL
Data Rate	150 Mbps	150 Mbps
Frequency	2.4 GHz	2.4 GHz
Memory Size	16 kB, 16 MB	4 - 16 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	38-SMD Module	38-SMD Module
Power - Output	23.98 dBm	23.98 dBm
Protocol	Bluetooth v4.2, 802.11b/g/n	Bluetooth v4.2, 802.11b/g/n
RF Family/Standard	WiFi, Bluetooth	WiFi, Bluetooth
Sensitivity	-97 dBm	-97 dBm
Serial Interfaces	I2S, GPIO, PWM, SDIO, I2C, UART, SPI, ADC	I2S, GPIO, PWM, SDIO, I2C, UART, SPI, ADC
Utilized IC / Part	ESP32-D0WD	ESP32-D0WD
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MOD BT WIFI PCB TH SMD

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Frequency	Utilized IC / Part	Antenna Type	Package / Case	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	RF Family/Standard	Power - Output	Serial Interfaces	Sensitivity	Protocol	Mounting Type
Fanstel Corp. ESP32M16	3.6 V	3 V	16 kB, 16 MB	2.4 GHz	ESP32-D0WD	PCB Trace	38-SMD Module	150 Mbps	-40 °C	105 ░C	Bluetooth, WiFi	23.98 dBm	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	-97 dBm	802.11b/g/n, Bluetooth v4.2	Surface Mount
Fanstel Corp. ESP32M4	3.6 V	3 V	4 MB, 16 kB	2.4 GHz	ESP32-D0WD	PCB Trace	38-SMD Module	150 Mbps	-40 °C	105 ░C	Bluetooth, WiFi	23.98 dBm	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	-97 dBm	802.11b/g/n, Bluetooth v4.2	Surface Mount
Fanstel Corp. ESP32E16	3.6 V	3 V	16 kB, 16 MB	2.4 GHz	ESP32-D0WD	Antenna Not Included, U.FL	38-SMD Module	150 Mbps	-40 °C	105 ░C	Bluetooth, WiFi	23.98 dBm	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART	-97 dBm	802.11b/g/n, Bluetooth v4.2	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
