92-458.400
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
92-458.400
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 92-458.400 | 92-458 Series |
|---|---|---|
| - | - | |
| (Select First, Then Apply Filters) Compatible Series | EAO, 92 | EAO, 92 |
| Actuator Type | Pushbutton, Square | Pushbutton, Square |
| Illumination | Illuminated - Yellow | Illuminated - Orange, Illuminated, Illuminated - Green, Illuminated - Yellow, Illuminated - Blue |
| Panel Cutout Dimensions | 16.2 mm | 16.2 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.56 | |
| 10 | $ 11.35 | |||
| 25 | $ 10.80 | |||
| 50 | $ 10.26 | |||
| 100 | $ 9.89 | |||
| 250 | $ 9.28 | |||
| 500 | $ 8.50 | |||
| 1000 | $ 7.51 | |||
92-458 Series
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Panel Cutout Dimensions | Actuator Type | Type | (Select First, Then Apply Filters) Compatible Series | Illumination | Requires |
|---|---|---|---|---|---|---|
EAO 92-458.300 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Illuminated - Orange | Contact Block(s), Illumination Source |
EAO 92-458.500 | ||||||
EAO 92-458.700 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Illuminated | Contact Block(s), Illumination Source |
EAO 92-458.500 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Illuminated - Green | Contact Block(s), Illumination Source |
EAO 92-458.400 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Illuminated - Yellow | Contact Block(s), Illumination Source |
EAO 92-458.200 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Contact Block(s), Illumination Source | |
EAO 92-458.100 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Illuminated | Contact Block(s), Illumination Source |
EAO 92-458.600 | 16.2 mm | Pushbutton, Square | Momentary | 92, EAO | Illuminated - Blue | Contact Block(s), Illumination Source |
Description
General part information
92-458 Series

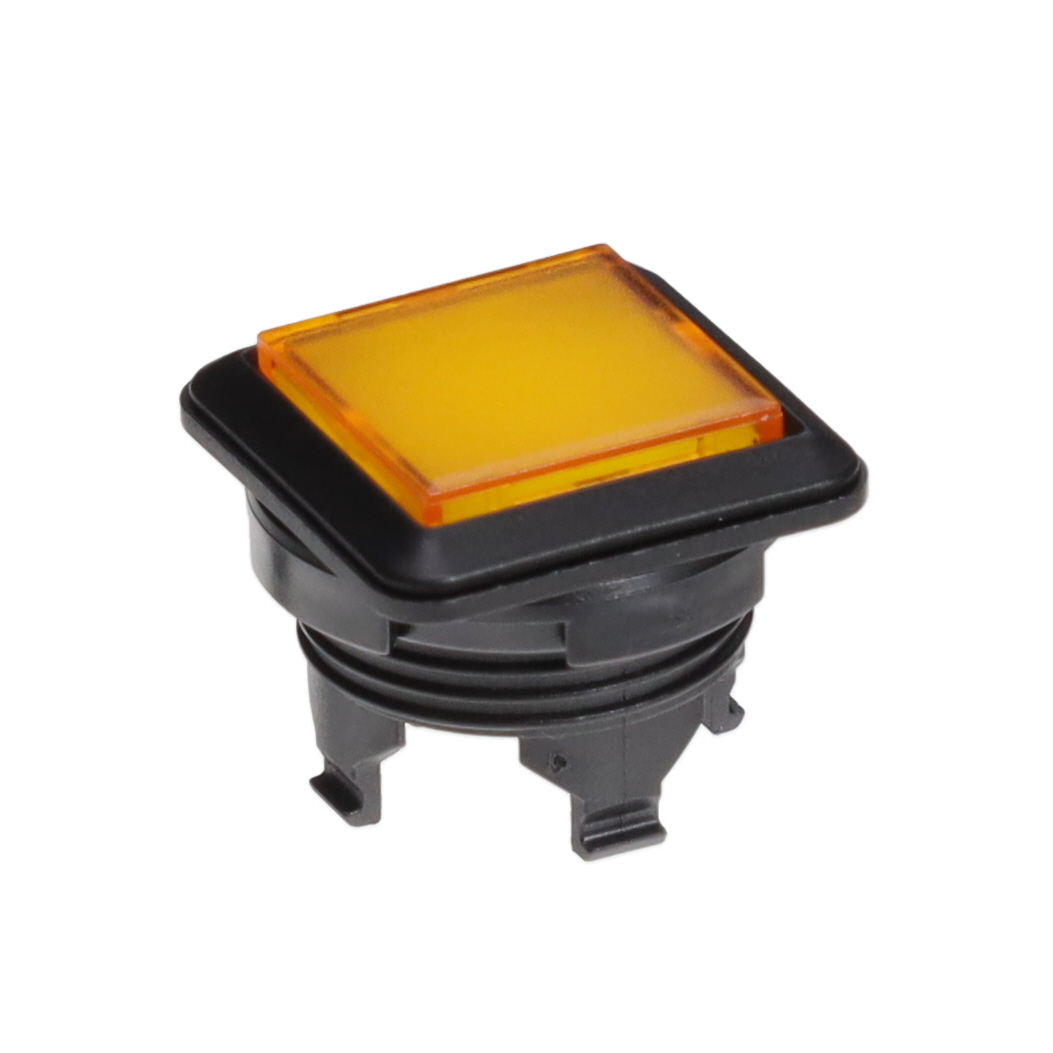

Configurable Switch Body Pushbutton, Square Illuminated - Yellow
