1-963215-1
ActiveTE Connectivity AMP Connectors

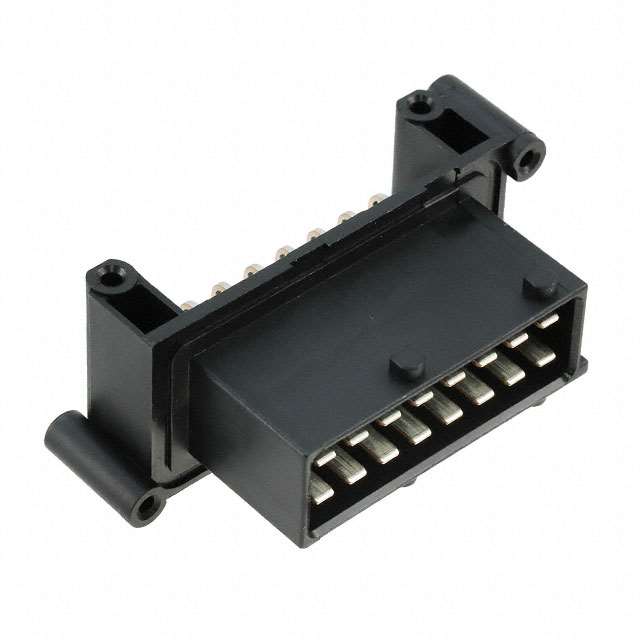

CONN HEADER R/A 16POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-963215-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-963215-1 |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Lever Lock |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 1.055 in |
| Insulation Height | 26.8 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 5 mm |
| Pitch - Mating | 0.197 " |
| Row Spacing - Mating | 0.236 in |
| Row Spacing - Mating | 6 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.79 | |
| 32 | $ 5.76 | |||
| 96 | $ 5.61 | |||
| 448 | $ 5.49 | |||
963215 Series
CONN HEADER R/A 16POS 5MM
| Part | Number of Positions | Contact Finish - Post | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Contact Length - Post | Contact Length - Post | Termination | Pitch - Mating | Pitch - Mating | Applications | Insulation Material | Insulation Color | Insulation Height | Insulation Height | Style | Features | Mounting Type | Fastening Type | Connector Type | Contact Material | Shrouding | Contact Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-963215-1 | 16 | Tin | All | 0.236 in | 6 mm | Rectangular | 0.122 " | 3.1 mm | Solder | 5 mm | 0.197 " | Automotive, General Purpose | Polybutylene Terephthalate (PBT), Glass Filled | Black | 1.055 in | 26.8 mm | Board to Board, Cable | Mounting Flange | Through Hole, Right Angle | Lever Lock | Plug | Copper Alloy | Shrouded - 4 Wall | Tab | 2 |
Description
General part information
963215 Series
Connector Header Through Hole, Right Angle 16 position 0.197" (5.00mm)
