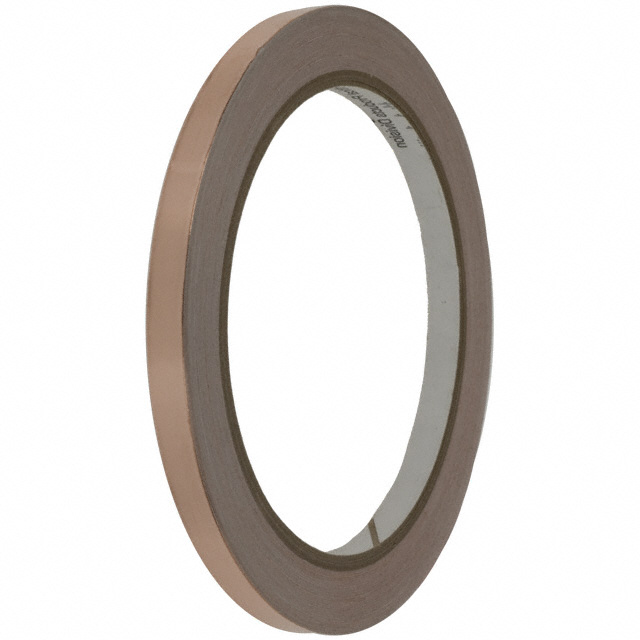

1181 X 1/4" - 1181 TAPE (1/4)

1181 X 1/4"

Active
3M

RF EMI SHIELDING TAPE 54'X0.25"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher1181 Series REACH Declaration+1
1181 X 1/4" - 1181 TAPE (1/4)

1181 X 1/4"

Active
3M

RF EMI SHIELDING TAPE 54'X0.25"

Deep-Dive with AI

DocumentsDate Code Decipher1181 Series REACH Declaration+1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification1181 X 1/4"1181 Series
AdhesiveConductive, Single SidedAcrylic, Conductive, Conductive, Single Sided, Conductive Acrylic
Backing, Carrier-Copper Foil
Color-Natural
Length16.5 m16.5 - 254 m
Length54 ft10 - 180 ft
Length-18 - 60 yd
MaterialCopper FoilCopper Foil
Operating Temperature [Max]130 °C130 °C
Operating Temperature [Min]-40 °C-40 °C
Shape-Rectangular
Shelf Life60 Months60 Months
Shelf Life StartDate of ManufactureDate of Manufacture
Storage/Refrigeration Temperature [Max]80 °F, 27 °C27 - 80 °F
Storage/Refrigeration Temperature [Min]10 °C10 °C
Tape Type-Copper Foil
Thickness - Backing, Carrier-0.0014 in
Thickness - Backing, Carrier-1.4 mils
Thickness - Backing, Carrier-0.035 mm
Thickness - Overall0.003 "0.003 "
Thickness - Overall0.07 mm0.07 mm
TypeShielding TapeShielding Tape, Safety Glasses, Shielding Sheet
Usage-EMI Shielding
Width0.25 in0.25 - 7.7 "
Width6.35 mm0.75 - 195 mm
Width-0.24 - 23 in
Width-6.1 - 584.2 mm
Width-9 - 152.4 mm
Width-0.35 - 6 in
Width-0.5 - 19.05 "

1181 Series

RF EMI SHIELDING TAPE 54' X 2"

PartLengthLengthTypeShelf LifeOperating Temperature [Min]Operating Temperature [Max]Storage/Refrigeration Temperature [Max]Storage/Refrigeration Temperature [Min]MaterialShelf Life StartThickness - OverallThickness - OverallWidth [x]Width [x]AdhesiveWidthColorUsageThickness - Backing, CarrierThickness - Backing, CarrierThickness - Backing, CarrierTape TypeLengthBacking, CarrierWidth [y]Width [y]WidthWidthShape
3M
1181 2" X 18 YDS
16.5 m
54 ft
Shielding Tape
60 Months
-40 °C
130 °C
27 °C, 80 °F
10 °C
Copper Foil
Date of Manufacture
0.003 "
0.07 mm
2 in
50.8 mm
Acrylic, Conductive
3M
1181 X 1.5"
16.5 m
54 ft
60 Months
-40 °C
130 °C
27 °C, 80 °F
10 °C
Copper Foil
Date of Manufacture
0.003 "
0.07 mm
1.5 in
Conductive, Single Sided
38.1 mm
3M
1181 6MMX16,5MMC36
16.5 m
54 ft
60 Months
Date of Manufacture
0.24 in
6.1 mm
Conductive Acrylic
Natural
EMI Shielding
0.0014 in
1.4 mils
0.035 mm
Copper Foil
18 yd
Copper Foil
3M
1181 12MMX165MMC19
16.5 m
54 ft
60 Months
Date of Manufacture
0.47 in
12 mm
Conductive Acrylic
Natural
EMI Shielding
0.0014 in
1.4 mils
0.035 mm
Copper Foil
18 yd
Copper Foil
3M
11815-00000-20
Safety Glasses
3M
11816-00000-20
Safety Glasses
3M
1181 X 6"
16.5 m
54 ft
Shielding Tape
60 Months
-40 °C
130 °C
27 °C, 80 °F
10 °C
Copper Foil
Date of Manufacture
0.003 "
0.07 mm
Conductive, Single Sided
152.4 mm
6 in
3M
1181 50MMX16,5MMC4
16.5 m
54 ft
60 Months
Date of Manufacture
Conductive Acrylic
Natural
EMI Shielding
0.0014 in
1.4 mils
0.035 mm
Copper Foil
18 yd
Copper Foil
50 mm
1.97 in
3M
1181 25MMX16,5MMC9
16.5 m
54 ft
60 Months
Date of Manufacture
Conductive Acrylic
25 mm
Natural
EMI Shielding
0.0014 in
1.4 mils
0.035 mm
Copper Foil
18 yd
Copper Foil
0.98 "
3M
1181 23"X18YD
16.5 m
54 ft
60 Months
Date of Manufacture
23 in
584.2 mm
Conductive Acrylic
Natural
EMI Shielding
0.0014 in
1.4 mils
0.035 mm
Copper Foil
18 yd
Copper Foil

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 28.78
10$ 23.23
36$ 21.39
108$ 20.26
252$ 19.59
504$ 19.16

Description

General part information

1181 Series

RF EMI Shielding Tape 1181 Copper Foil Conductive, Single Sided 0.250" (6.35mm) X 54.000' (16.50m) X 0.003" (0.07mm)
