C2421A.41.10

Active

Prysmian Group

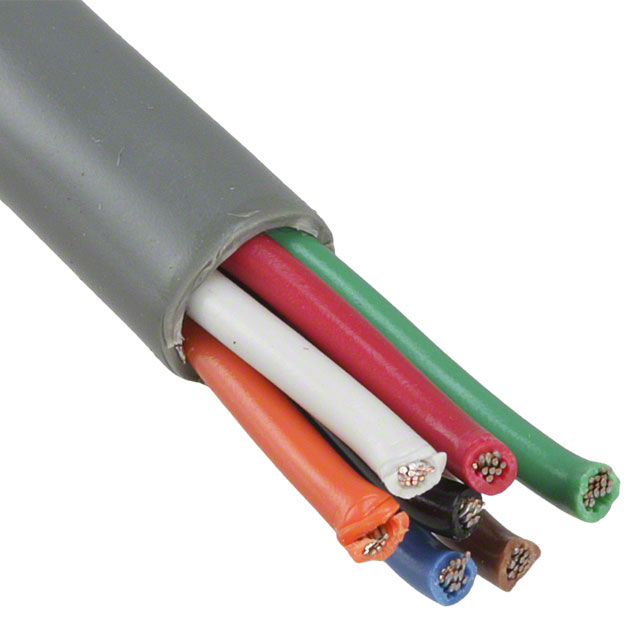

CABLE 7COND 18AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 7COND 18AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C2421A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.85 mm
Jacket (Insulation) Diameter [diameter]	0.309 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Cable Type	Conductor Insulation	Length	Length	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors
Prysmian Group C2421A.41.10	Gray	300 V	Poly-Vinyl Chloride (PVC)	16	30 AWG	Copper Tinned	18 AWG	-20 C	80 C	500 '	152.4 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Communication Control	7.85 mm	0.309 in	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
