1942400

Active

Phoenix Contact

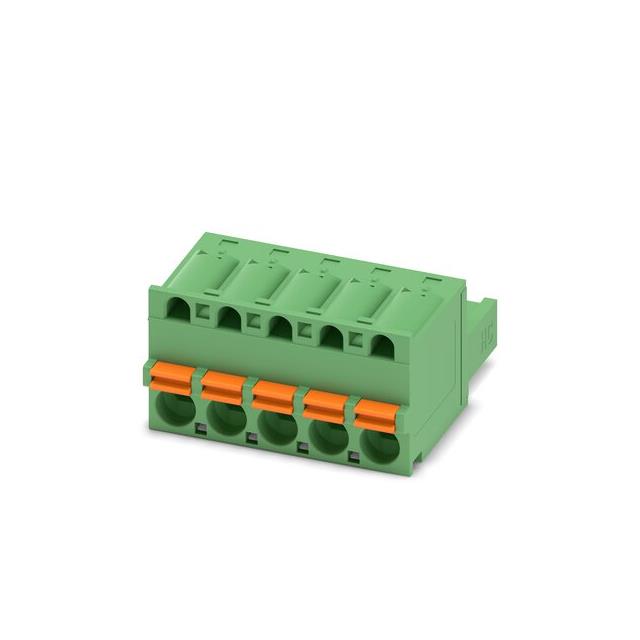

PLUGGABLE TERMINAL BLOCKS 5 POS 5.08MM PITCH PLUG 24-12AWG SPRING

Deep-Dive with AI

Search across all available documentation for this part.

Documents1942400 Datasheet +1

1942400

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 5 POS 5.08MM PITCH PLUG 24-12AWG SPRING

Deep-Dive with AI

Documents1942400 Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.80
Newark	Each	1	$ 4.14
		10	$ 3.97
		50	$ 3.75
		100	$ 3.52
		250	$ 3.24
Sager	N/A	50	$ 5.86
		150	$ 5.64
		300	$ 5.45

Description

General part information

FKC Series

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 24-12AWG Spring

Documents

Technical documentation and resources

1942400

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1942400	FKC Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	16 A	12 - 16 A
Current - UL	16 A	10 - 16 A
Features	-	Retention Latches (Non-Wire Side), Latch Lock, Ejector Latches
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.591 in
Insulation Height	15 mm	15 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	6 - 15
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	5	5 - 15
Termination Style	Screwless - Push-In Spring	Screwless - Push-In Spring, Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	10 mm	10 mm

FKC Series

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 24-12AWG Spring

Part	Current - UL	Pitch [x]	Pitch [x]	Positions Per Level	Mounting Type	Wire Strip Length	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Contact Mating Finish	Material Flammability Rating	Current - IEC	Housing Material	Termination Style	Insulation Height	Insulation Height	Type	Number of Levels	Color	Features	Number of Positions	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1942400	16 A	0.2 in	5.08 mm	5	Free Hanging (In-Line)	10 mm	0.2 mm²	2.5 mm²	630 V	12 AWG	26 AWG	300 V	Tin	UL94 V-0	16 A	Polyamide (PA), Nylon	Screwless - Push-In Spring	0.591 in	15 mm	Plug, Female Sockets	1	Green
Phoenix Contact 1925812	10 A	0.2 in	5.08 mm	14	Free Hanging (In-Line)	10 mm	0.2 mm²	2.5 mm²	630 V	12 AWG	26 AWG	300 V	Tin	UL94 V-0	12 A	Polyamide (PA), Nylon	Screwless - Push-In Spring	0.591 in	15 mm	Plug, Female Sockets	1	Green	Latch Lock, Retention Latches (Non-Wire Side)	14
Phoenix Contact 1910393	10 A	0.197 in	5 mm	6	Free Hanging (In-Line)	10 mm			630 V	12 AWG	26 AWG	300 V	Tin	UL94 V-0	12 A	Polyamide (PA), Nylon	Push-In Spring, Screwless - Leg Spring	0.591 in	15 mm	Plug, Female Sockets	1	Green		6	0.2 mm˛	2.5 mm˛
Phoenix Contact 1925825	10 A	0.2 in	5.08 mm	15	Free Hanging (In-Line)	10 mm	0.2 mm²	2.5 mm²	630 V	12 AWG	26 AWG	300 V	Tin	UL94 V-0	12 A	Polyamide (PA), Nylon	Screwless - Push-In Spring	0.591 in	15 mm	Plug, Female Sockets	1	Green	Latch Lock, Retention Latches (Non-Wire Side)	15
Phoenix Contact 1792614	10 A	0.2 in	5.08 mm	12	Free Hanging (In-Line)	10 mm	0.2 mm²	2.5 mm²	630 V	12 AWG	26 AWG	300 V	Tin	UL94 V-0	12 A	Polyamide (PA), Nylon	Screwless - Push-In Spring	0.591 in	15 mm	Plug, Female Sockets	1	Green	Ejector Latches, Retention Latches (Non-Wire Side)	12
