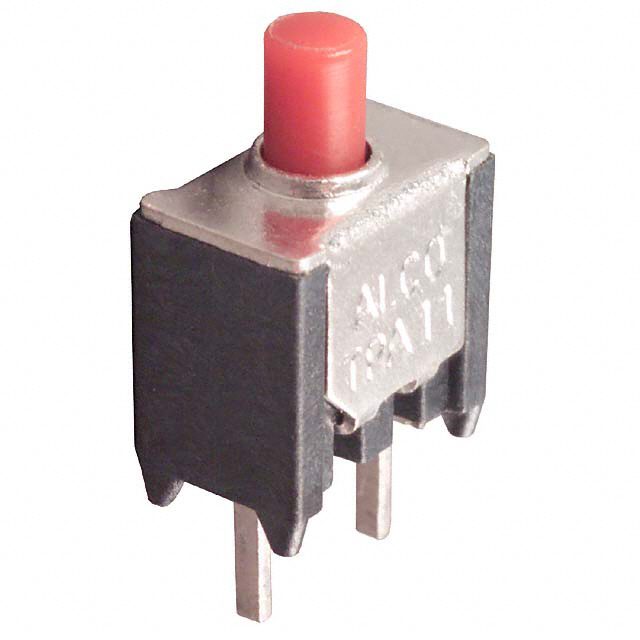

TPA11CGPC2

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Color - Actuator/Cap	Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Mounting Type	Termination Style	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Electrical Life	Circuit	Switch Function
TE Connectivity Raychem Cable Protection TPA11CGPC2	Red	Standard	65 °C	-30 ░C	No Marking	Through Hole	PC Pin	20 V	20 V	0.4 VA	Round Plunger	100000 Cycles	SPST-NO	Off-Mom
TE Connectivity Raychem Cable Protection TPA11CGRA6	Blue	Standard	65 °C	-30 ░C	No Marking	Through Hole Right Angle	PC Pin	20 V	20 V	0.4 VA	Round Plunger	100000 Cycles	SPST-NO	Off-Mom
TE Connectivity Raychem Cable Protection TPA11CGRA0	Black	Standard	65 °C	-30 ░C	No Marking	Through Hole Right Angle	PC Pin	20 V	20 V	0.4 VA	Round Plunger	100000 Cycles	SPST-NO	Off-Mom
TE Connectivity Raychem Cable Protection TPA11FGPC2	Red	Standard	65 °C	-30 ░C	No Marking	Through Hole	PC Pin	20 V	20 V	0.4 VA	Round Plunger	100000 Cycles	SPDT	On-Mom
TE Connectivity Raychem Cable Protection TPA11CGPC6	Blue	Standard	65 °C	-30 ░C	No Marking	Through Hole	PC Pin	20 V	20 V	0.4 VA	Round Plunger	100000 Cycles	SPST-NO	Off-Mom
TE Connectivity Raychem Cable Protection TPA11FGPC6	Blue	Standard	65 °C	-30 ░C	No Marking	Through Hole	PC Pin	20 V	20 V	0.4 VA	Round Plunger	100000 Cycles	SPDT	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Standard Through Hole
