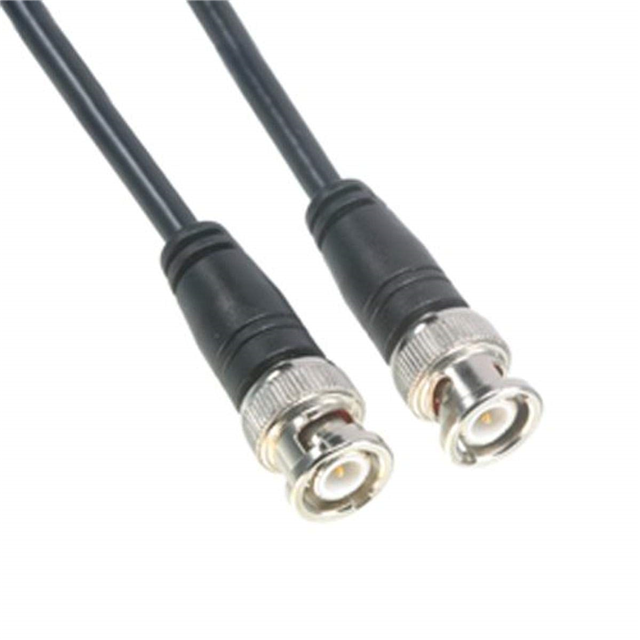

Specification	CO-058BNCX200-002

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG, 58
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	24 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Style	BNC

CO-058BNCX Series

Part	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	1st Contact Gender	Length	Frequency - Max	Style	Cable Type	Features	Cable Impedance	2nd Connector	Color	1st Connector	Length (ft)
McGill Microwave Systems CO-058BNCX200-004	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	48 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-003	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	36 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-005	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	1524 mm	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug	5 ft
McGill Microwave Systems CO-058BNCX200-015	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	180 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-012	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	144 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-006	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	72 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-002	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	24 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-025	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	300 in	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-050	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	15.24 m	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
McGill Microwave Systems CO-058BNCX200-000.6	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	-40 °C	85 °C	Male	0.5 ft	4 GHz	BNC	58 RG	Shielded	50 Ohms	BNC Plug	Black	BNC Plug
