W6380-4SG-P-3DC

Active

Conxall/Switchcraft

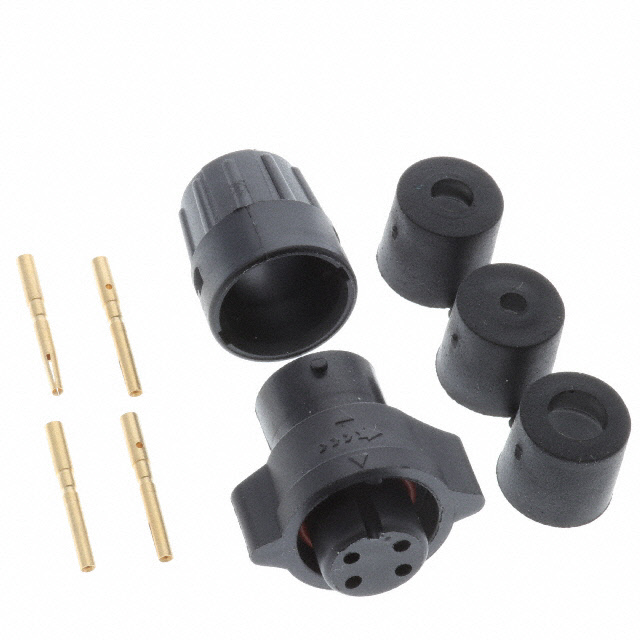

CONN PLUG FMALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	W6380-4SG-P-3DC	W6380-4 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	6.6 - 7.11 mm
Cable Opening	-	0.26 - 0.28 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	300 VAC	300 VAC

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Number of Positions	Connector Type	Fastening Type	Backshell Material, Plating	Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Insert Material	Orientation	Ingress Protection	Contact Material	Primary Material	Termination	Features	Applications	Mounting Type	Voltage Rating	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6380-4SG-P-3DC	4	Female Sockets, Plug	Bayonet Lock	Thermoplastic	Black	Gold	85 °C	-40 °C	Unshielded	Thermoplastic	Keyed	IP66, IP67, IP68	Copper Alloy	Plastic	Crimp	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	300 VAC	Varies by Wire Gauge
Conxall/Switchcraft W6380-4SG-P-528	4	Female Sockets, Plug	Bayonet Lock	Thermoplastic	Black	Gold	85 °C	-40 °C	Unshielded	Thermoplastic	Keyed	IP66, IP67, IP68	Copper Alloy	Plastic	Crimp	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	300 VAC	Varies by Wire Gauge	6.6 mm, 7.11 mm	0.26 in, 0.28 in
