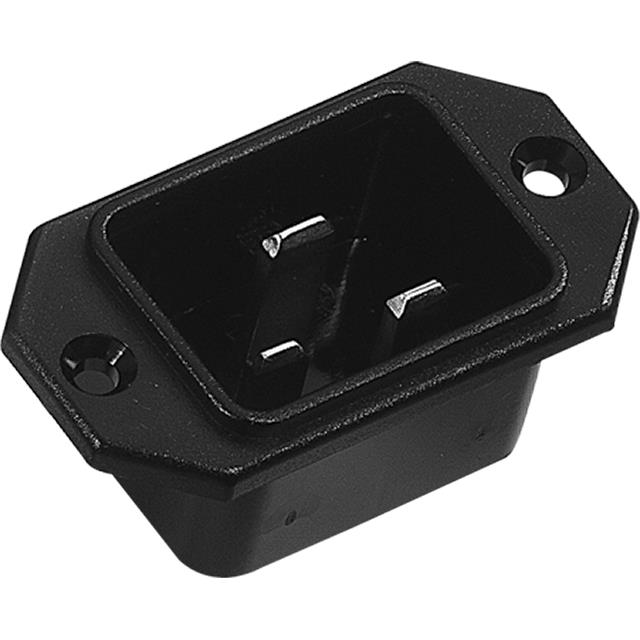

42R07-1122

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C22 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C22 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	42R07-1122	42R07 Series

Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C22	IEC 320-C20, IEC 320-C22
Connector Type	Receptacle, Male Pins - Module	Receptacle, Male Pins - Module
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	-	Panel Mount, Snap-In
Number of Positions	4	4
Panel Cutout Dimensions [x]	33 mm	33 mm
Panel Cutout Dimensions [y]	25 mm	25 mm
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect

PWR ENT MOD RCPT IEC320-C20 PNL

Part	Mounting Type	Number of Positions	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Approval Agency	Termination	Termination	Termination	Connector Type
Power Dynamics, Inc. 42R07-3121-150	Panel Mount, Snap-In	4	UL94 V-0	25 mm	33 mm	IEC 320-C20	CSA, UL, VDE	0.25 in	6.3 mm	Quick Connect	Receptacle, Male Pins - Module
Power Dynamics, Inc. 42R07-1122		4	UL94 V-0	25 mm	33 mm	IEC 320-C22	CSA, UL, VDE	0.25 in	6.3 mm	Quick Connect	Receptacle, Male Pins - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Pins - Module IEC 320-C22 Panel Mount
